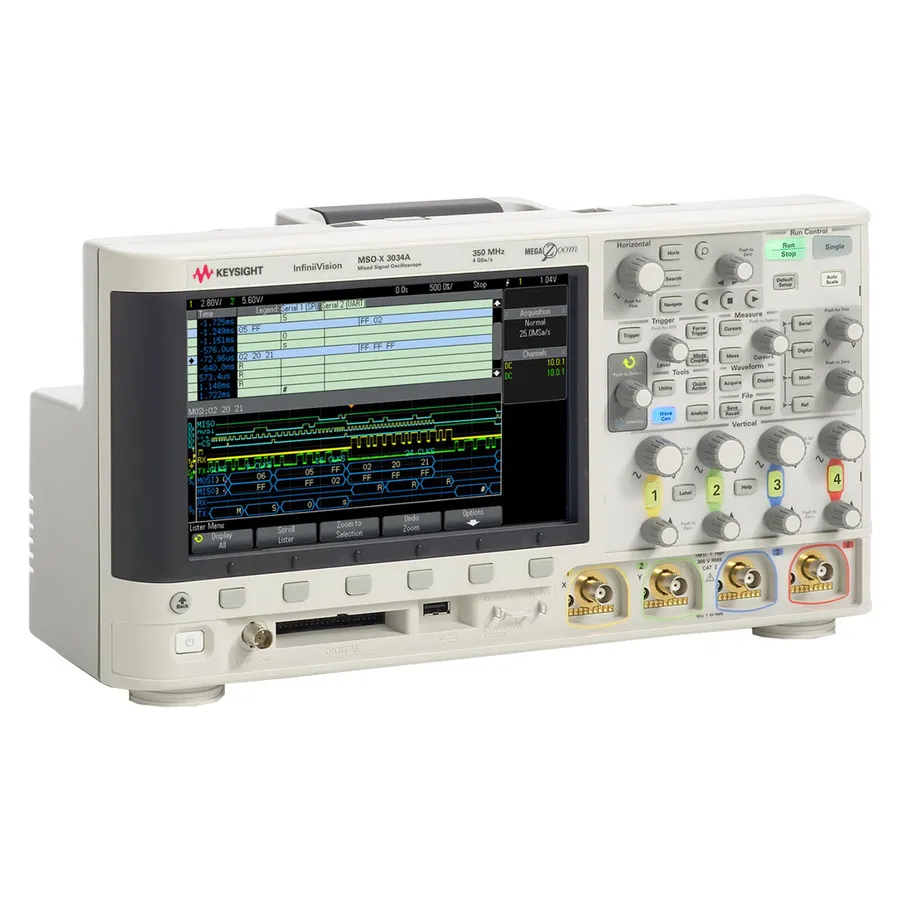

Keysight MSOX3034A Mixed Signal Oscilloscope
Request a quote
Keysight MSOX3034A is a 350 MHz mixed signal oscilloscope with 4 analog and 16 digital channels, 4 GS/s sampling, and 1 million waveforms/s update rate.
Product details
| Model | MSOX3034A |
| Manufacturer | Keysight |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Keysight MSOX3034A is a 350 MHz mixed signal oscilloscope from the industry-leading InfiniiVision 3000 X-Series. It combines 4 analog channels and 16 optional digital channels with an industry-leading 1 million waveforms per second update rate, delivering superior signal visibility for complex measurement and debugging tasks. The oscilloscope integrates five measurement instruments in one platform, providing maximum capability and investment protection.
Key Features
- 350 MHz bandwidth with 4 GS/s sample rate
- 4 analog channels and 16 digital channels
- 2 Mpts standard memory (4 Mpts optional)
- Industry-leading 1 million waveforms per second update rate
- MegaZoom IV smart memory technology
- 5-instruments-in-1 integration (oscilloscope, logic analyzer, function/arbitrary waveform generator, digital voltmeter, protocol analyzer)
- 8.5 inch WVGA color display
- Serial protocol triggering and analysis options
- Waveform math and FFT analysis
- USB host and device connectivity with optional LAN, VGA, and GPIB interfaces
- Fully upgradeable architecture including bandwidth upgrade to 1 GHz
Applications
- Embedded systems and microcontroller debugging
- Mixed-signal circuit design verification
- Serial bus protocol analysis (I2C, SPI, UART)
- Power supply design and troubleshooting
- General electronics testing and measurement
Specifications
| Bandwidth | 350 MHz |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Sampling Rate | 4 GS/s |
| Memory | 2 Mpts |
| Type | MSO |
| Vertical Resolution | 8 bit |
| Display Type | 8.5 WVGA |
| Series | 3000 X-Series |
