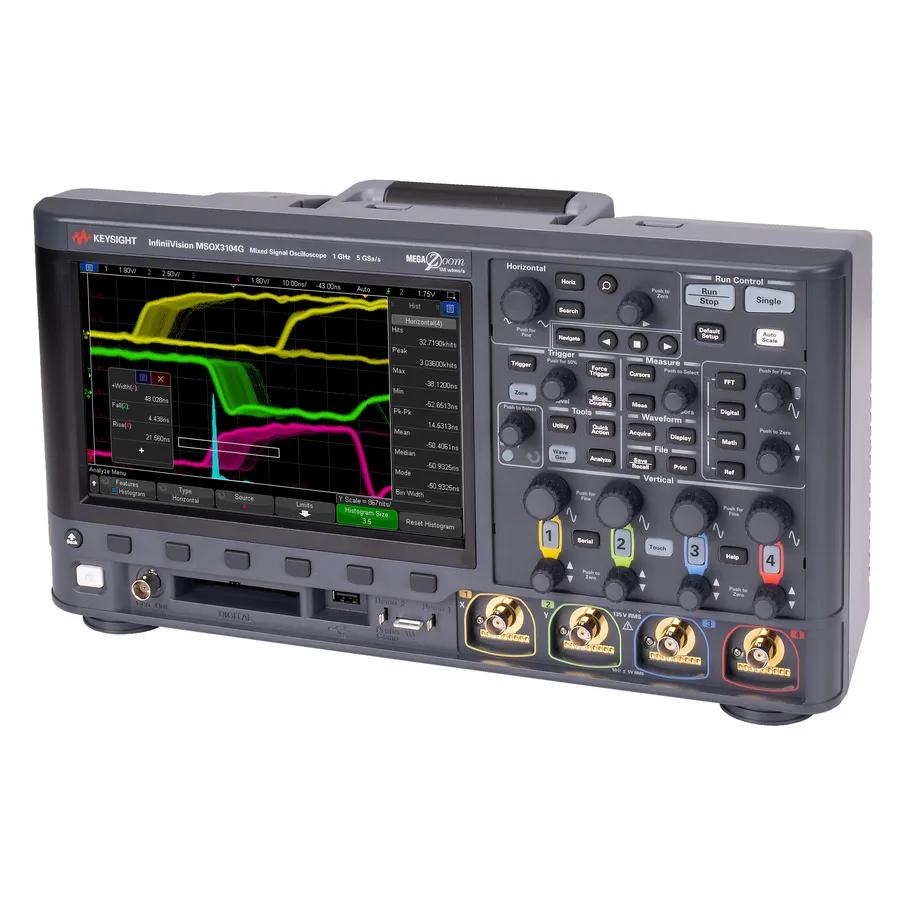

Keysight MSOX3032G Mixed Signal Oscilloscope

Overview

The Keysight InfiniiVision 3000G X-Series MSOX3032G is a next-generation mixed signal oscilloscope combining high-end technology in a compact form factor. Featuring an intuitive capacitive touch interface with multi-modal operation (touch, front panel, menu-driven), industry-leading 1 million waveforms per second update rate, and zone triggering, it enables engineers to isolate and analyze complex signal interactions that traditional oscilloscopes miss.

Key Features

• 350 MHz bandwidth with 2 analog + 16 digital channels
• Up to 5 GSa/s maximum sample rate with up to 4 Mpts memory depth
• 1,000,000 waveforms/second update rate for capturing elusive glitches
• 8.5-inch capacitive touch display with three operation modes: touch GUI, front panel buttons, or Windows-like menu
• Zone touch triggering for instant signal isolation
• Built-in 20 MHz function/arbitrary waveform generator with modulation capability
• Serial protocol trigger and decode: I2C, SPI, UART, I2S, USB PD
• Mask limit and measurement limit testing
• Standard 8-digit counter and totalizer
• Frequency response analysis with Bode plots
• Enhanced HDTV video analysis
• 7-in-1 instrument integration with dual serial protocol decoding via segmented memory
• BenchVue software support and mobile device monitoring/control

Applications

• Aerospace and defense systems (MIL-STD-1553, ARINC 429 protocols with optional software)
• Automotive embedded systems and powerline/body control networks
• Power electronics and power supply characterization (optional automated measurements)
• USB 2.0 device and system testing with extended analysis capability
• Mixed-signal circuit debugging with multi-protocol analysis

Included Accessories

• Passive probes N2843A, 500 MHz, 10:1 attenuation, 1 MΩ, 11 pF (one per channel)
• Certificate of calibration and localized power cord
