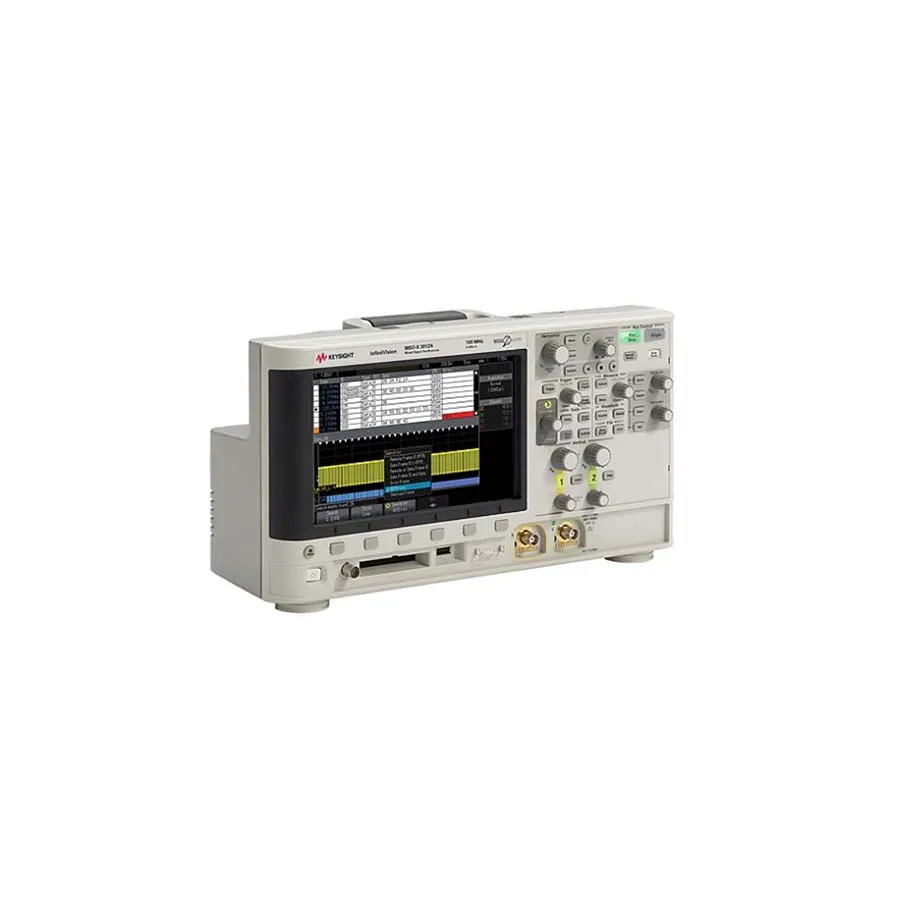

Keysight MSOX3032A Mixed Signal Oscilloscope

Overview

The Keysight InfiniiVision MSOX3032A is a high-performance mixed signal oscilloscope that combines 5-instruments-in-1 integration with industry-leading waveform capture capabilities. With 350 MHz bandwidth, 4 GSa/s sampling, and 1 million waveforms per second update rate, it excels at capturing and analyzing elusive signal anomalies and protocol interactions in complex embedded systems.

Key Features

• 350 MHz bandwidth with 2 analog + 16 digital channels
• 4 GSa/s maximum sample rate with 2 Mpts standard memory, 4 Mpts optional
• 1,000,000 waveforms/second update rate for reliable glitch detection
• 8.5-inch WVGA color display with intuitive interface
• Built-in 20 MHz WaveGen function/arbitrary waveform generator
• 5-instruments-in-1: oscilloscope, logic analyzer, waveform generator, integrated DVM, and protocol analyzer
• Serial protocol triggering and decode for I2C, SPI, UART, CAN, and USB
• Waveform math and FFT frequency analysis
• MegaZoom IV smart memory technology
• Fully upgradable bandwidth to 1 GHz
• USB host/device ports with optional LAN, VGA, and GPIB connectivity

Applications

• Mixed-signal embedded system design and debugging
• Serial protocol verification and troubleshooting
• Power supply design and characterization
• High-speed digital signal integrity analysis
• Microcontroller and processor validation
