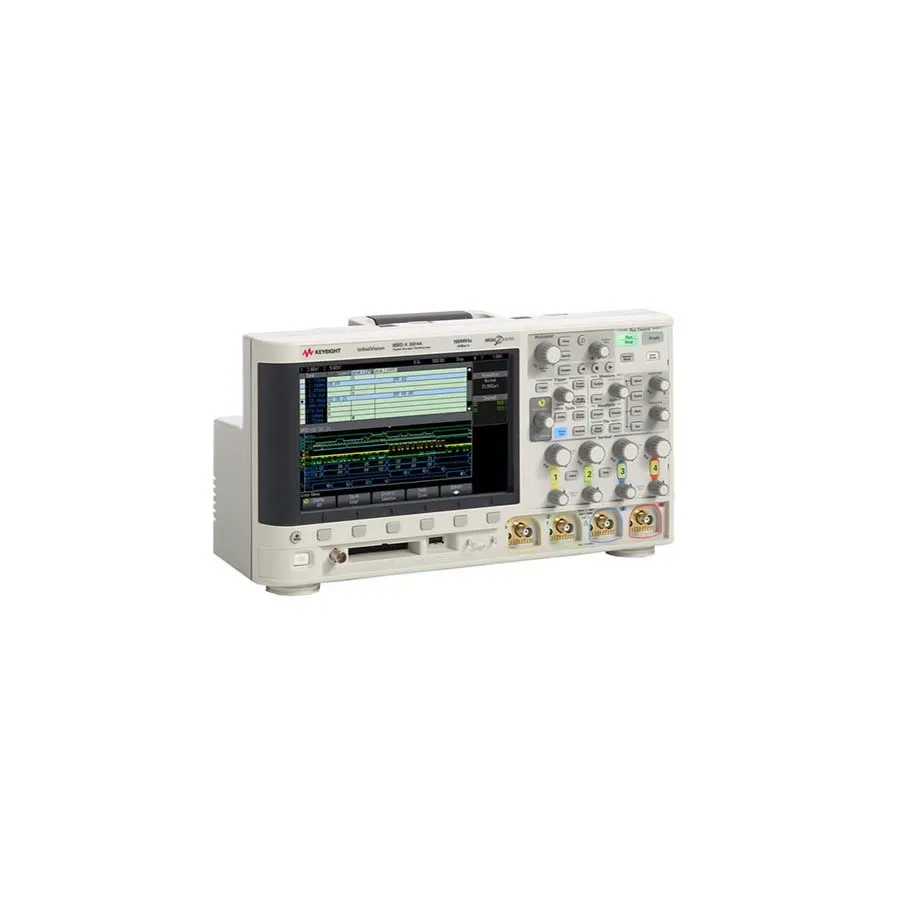

Keysight MSOX3024A Mixed Signal Oscilloscope
Request a quote
Keysight MSOX3024A is a 200 MHz mixed signal oscilloscope with 4 analog and 16 digital channels, 4 GSa/s sample rate, and 2M standard memory depth.
Product details
| Model | MSOX3024A |
| Manufacturer | Keysight |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Keysight InfiniiVision 3000 X-Series MSOX3024A is a versatile mixed signal oscilloscope engineered to capture and analyze complex signals in modern designs. It combines 4 analog and 16 digital channels in one integrated platform, delivering exceptional measurement speed with an industry-leading 1 million waveforms per second update rate. The instrument features fully upgradeable architecture, including optional bandwidth upgrades to 1 GHz, ensuring long-term investment protection.
Key Features
- 200 MHz bandwidth (upgradeable to 1 GHz)
- 4 analog channels + 16 digital channels
- 4 GSa/s sample rate
- 2M points standard memory (4M optional)
- 1,000,000 waveforms/second update rate
- 8.5-inch WVGA color display
- MegaZoom IV smart memory technology
- Serial protocol triggering and decoding
- Integrated 20 MHz function/arbitrary waveform generator
- Integrated frequency counter and digital voltmeter
- Waveform math and FFT analysis
- USB host/device, optional LAN, VGA, and GPIB interfaces
Applications
- General circuit verification and signal analysis
- Embedded system development and debugging
- Serial protocol analysis and verification
- Power supply design and characterization
- Digital circuit design validation
Specifications
| Bandwidth | 200 MHz |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Sampling Rate | 4 GS/s |
| Memory | 2 Mpts |
| Type | MSO |
| Vertical Resolution | 8 bit |
| Display Type | 8.5 WVGA |
| Series | 3000 X-Series |
