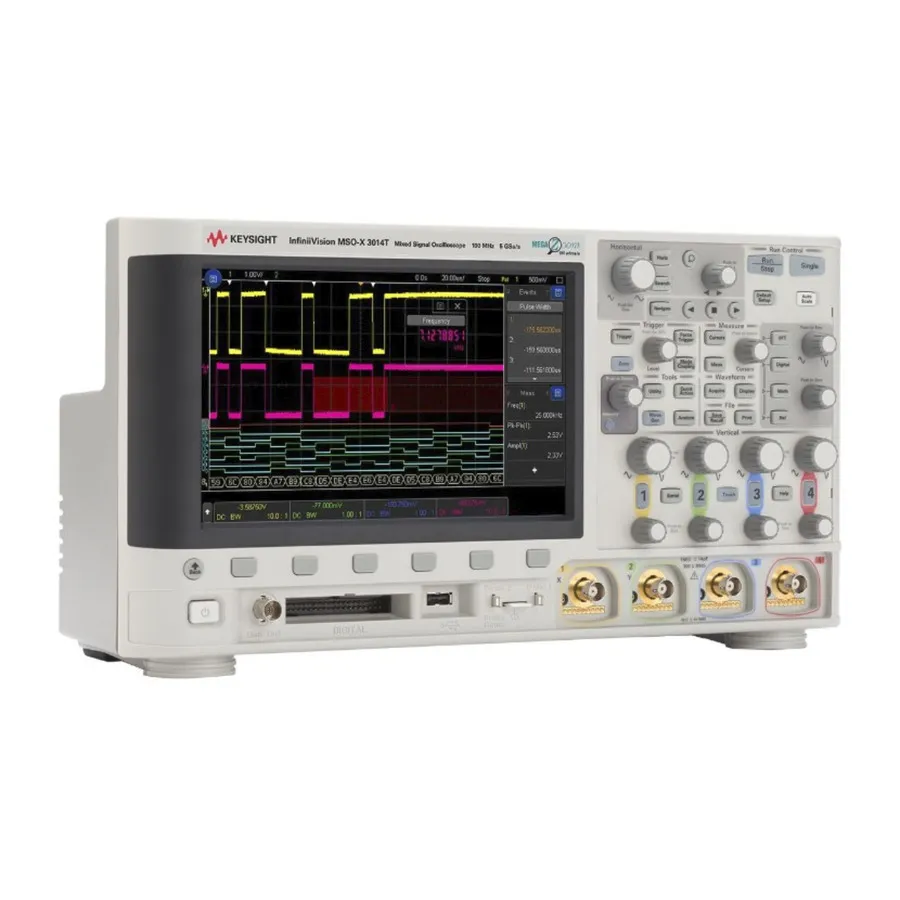

Keysight MSOX3014T Mixed Signal Oscilloscope

Overview

The Keysight MSOX3014T is a mixed signal oscilloscope delivering high-end capabilities in a compact form factor, featuring 4 analog and 16 digital channels with 100 MHz bandwidth and 5 GSa/s sample rate. The InfiniiVision 3000T X-Series combines an intuitive 8.5-inch capacitive touch screen interface with an industry-leading 1 million waveforms per second update rate and 7-in-1 instrument integration for comprehensive signal analysis and troubleshooting.

Key Features

• 4 analog channels + 16 digital channels for mixed signal measurements
• 100 MHz bandwidth with 5 GSa/s sample rate
• 4 Mpts memory with segmented smart memory
• 1 million waveforms per second update rate for capturing transient events
• 8.5-inch capacitive touch display with intuitive zone touch triggering
• 7-in-1 instrument integration: oscilloscope, frequency response analyzer, logic analyzer, protocol analyzer, WaveGen, voltmeter, and counter
• Hardware-based serial bus decoding with faster protocol analysis
• Simplified operations for rapid problem isolation
• Advanced triggering as simple as drawing a box with your finger
• Zone touch triggering for complex triggering scenarios
• Full upgradeability for bandwidth, instrument integration, and advanced applications
• BenchVue software standard for test automation and data collection

Applications

• Digital circuit debugging and timing analysis
• Mixed signal system verification
• Frequency response measurement
• Serial protocol decoding and analysis
• Embedded system development and troubleshooting
