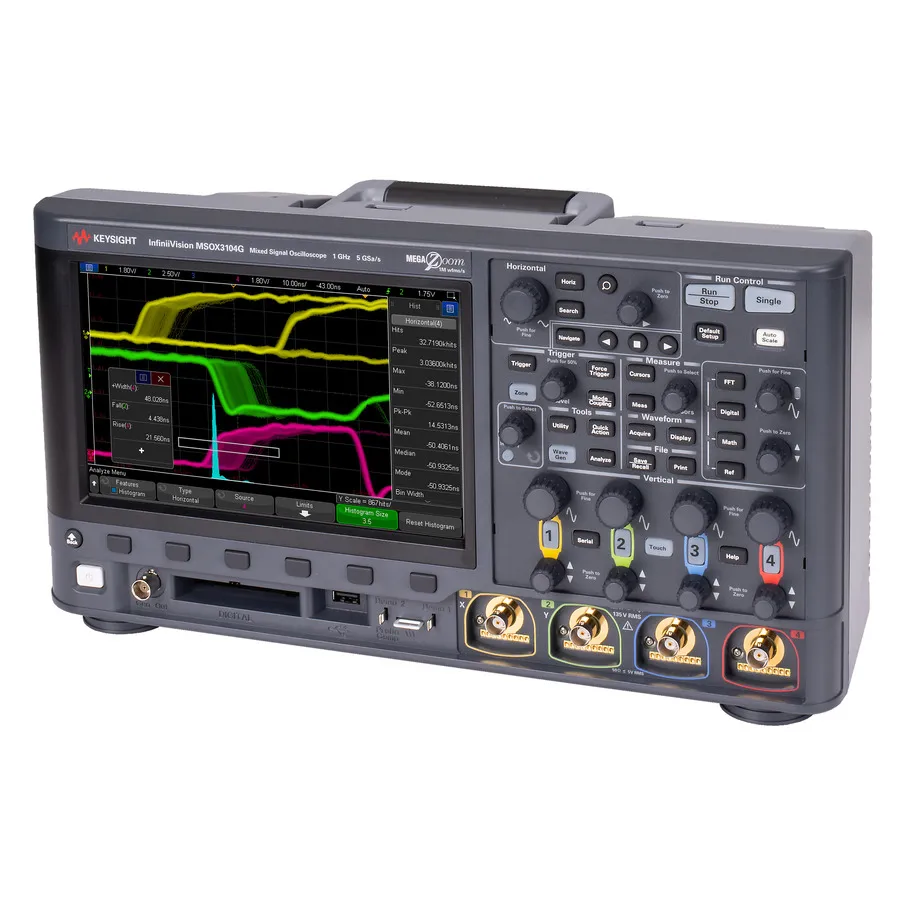

Keysight MSOX3014G Mixed Signal Oscilloscope

Overview

The Keysight MSOX3014G is a high-performance mixed signal oscilloscope featuring 4 analog and 16 digital channels with 100 MHz bandwidth and up to 5 GSa/s sample rate. The InfiniiVision 3000G X-Series brings high-end testing capabilities in a compact form factor with an intuitive capacitive touch interface, industry-leading 1 million waveforms per second update rate, and zone trigger for capturing and isolating signal anomalies.

Key Features

• 4 analog channels + 16 digital channels for comprehensive signal analysis
• 100 MHz bandwidth with up to 5 GSa/s sample rate
• Up to 4 Mpoints memory depth with segmented memory
• 1 million waveforms per second update rate powered by MegaZoom IV technology
• 8.5-inch capacitive touch display with multi-touch zone triggering
• Built-in 20 MHz function/arbitrary waveform generator
• 7-in-1 instrument integration: oscilloscope, mixed signal, WaveGen, frequency response analyzer, protocol analyzer, voltmeter, and counter
• Hardware-based serial protocol decoding: I2C, SPI, UART, I2S, USB PD
• Waveform and measurement histograms
• Mask limit and measurement limit testing
• 8-digit counter and totalizer
• Frequency response analysis (Bode plots)
• Enhanced HDTV video analysis
• USB host, USB device, LAN, VGA connectivity
• Three user interface options: touch GUI, front panel controls, Windows-like menu
• Mobile device monitoring and control via BenchVue software

Included Accessories

• Passive probes N2843A, 500 MHz, 10:1 attenuation, 1 Megohm input impedance (one per channel)
• Certificate of calibration
• Localized power cord

Applications

• Aerospace and defense system testing and validation
• Automotive electronics and bus analysis
• Power supply design and characterization
• USB protocol debugging and analysis
• General mixed signal design verification
