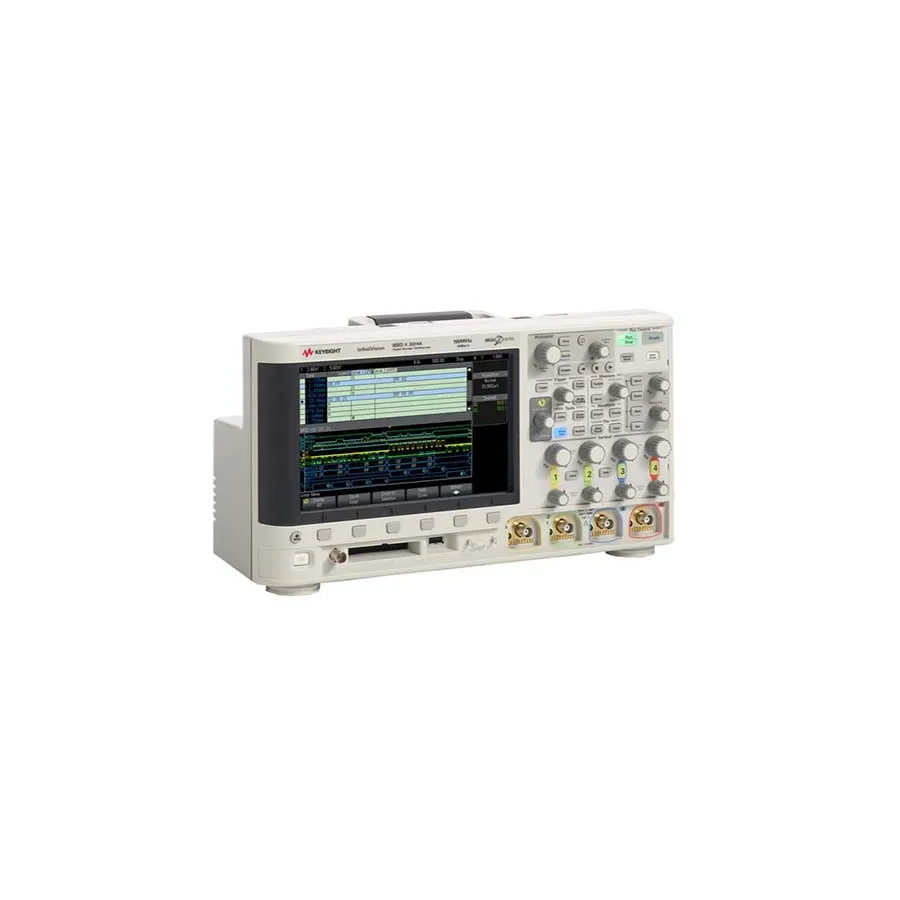

Keysight MSOX3014A Mixed Signal Oscilloscope
Request a quote
Keysight MSOX3014A — mixed signal oscilloscope with 4+16 channels, 100 MHz bandwidth, 4 GSa/s sample rate, and integrated function generator.
Product details
| Model | MSOX3014A |
| Manufacturer | Keysight |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Keysight MSOX3014A is a mixed signal oscilloscope delivering comprehensive analysis capabilities with 4 analog and 16 digital channels, 100 MHz bandwidth, and 4 GSa/s sample rate. As part of the InfiniiVision 3000 X-Series, it provides an industry-leading 1 million waveforms per second update rate and 5-instruments-in-1 integration for versatile testing applications.
Key Features
- 4 analog channels + 16 digital channels for complete signal capture
- 100 MHz bandwidth with 4 GSa/s maximum sample rate
- 2 Mpts standard memory, optionally upgradeable to 4 Mpts
- 1 million waveforms per second update rate for capturing transient events
- 8.5-inch WVGA color display with intuitive interface
- Built-in 20 MHz function/arbitrary waveform generator with modulation
- 5-instruments-in-1 integration (oscilloscope, digital channels, WaveGen, DVM, and protocol analyzer)
- MegaZoom IV smart memory technology
- Optional segmented memory for protocol decoding
- Serial protocol triggering and analysis options
- Waveform math and FFT analysis
- USB, LAN, VGA connectivity; optional GPIB interface
- Fully upgradable bandwidth to 1 GHz
Applications
- Mixed signal system design and verification
- Serial bus protocol analysis and debugging
- Frequency domain analysis with FFT
- Arbitrary waveform generation and signal characterization
Specifications
| Bandwidth | 100 MHz |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Sampling Rate | 4 GS/s |
| Memory | 2 Mpts |
| Type | MSO |
| Vertical Resolution | 8 bit |
| Display Type | 8.5 Capacitive Touch |
| Series | 3000 X-Series |
