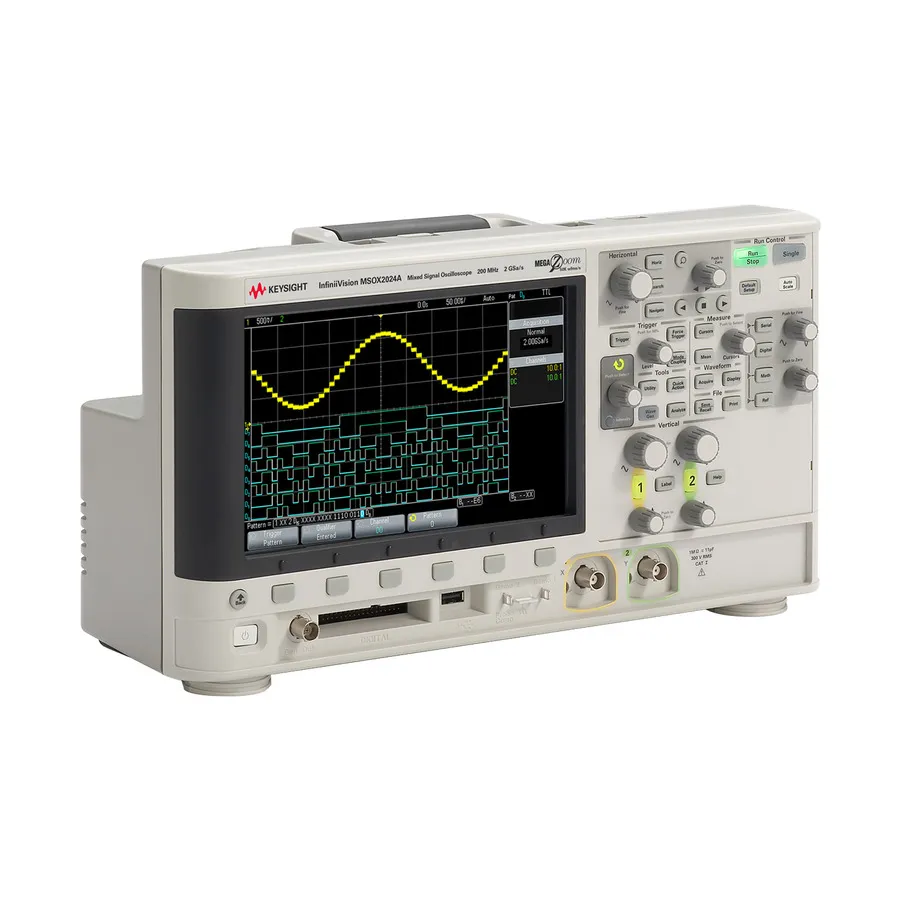

Keysight MSOX2024A Mixed Signal Oscilloscope
Request a quote
Keysight MSOX2024A is a 200 MHz mixed signal oscilloscope with 4 analog and 8 digital channels, 200,000 wfms/s update rate, and optional WaveGen.
Product details
| Model | MSOX2024A |
| Manufacturer | Keysight |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Keysight MSOX2024A is a mixed signal oscilloscope from the InfiniiVision X-Series that combines analog and digital signal measurement in a compact platform. With 200 MHz bandwidth, 4 analog channels, 8 digital channels, and ultra-fast 200,000 waveforms per second update rate, it delivers best-in-class performance for comprehensive signal analysis.
Key Features
- 200 MHz analog bandwidth with 4 channels plus 8 digital channels for mixed signal observation
- 1 Mpts memory with sampling up to 2 GSa/s in half-channel mode
- 200,000 waveforms/second update rate with MegaZoom IV technology
- 8.5-inch WVGA color display
- Optional integrated 20 MHz WaveGen function generator
- Waveform math and FFT analysis
- Compact footprint weighing only 8.5 pounds
- Multiple connectivity options: USB host/device, optional LAN, VGA, and GPIB
- Intuitive InfiniiVision user interface with built-in training signals and help
- Five-year warranty and full upgrade path for bandwidth and features
Applications
- Analog and digital circuit debugging and characterization
- Mixed signal systems development and verification
- Serial protocol analysis and triggering
- Power supply and embedded system testing
- Laboratory education and training
Specifications
| Bandwidth | 200 MHz |
| Analog Channels | 4 |
| Digital Channels | 8 |
| Sampling Rate | 1 GS/s |
| Memory | 100 kpts |
| Type | MSO |
| Vertical Resolution | 8 bit |
| Display Type | 8.5 WVGA |
| Series | 2000 X-Series |
| Special Features | Frequency Counter, Voltmeter |
