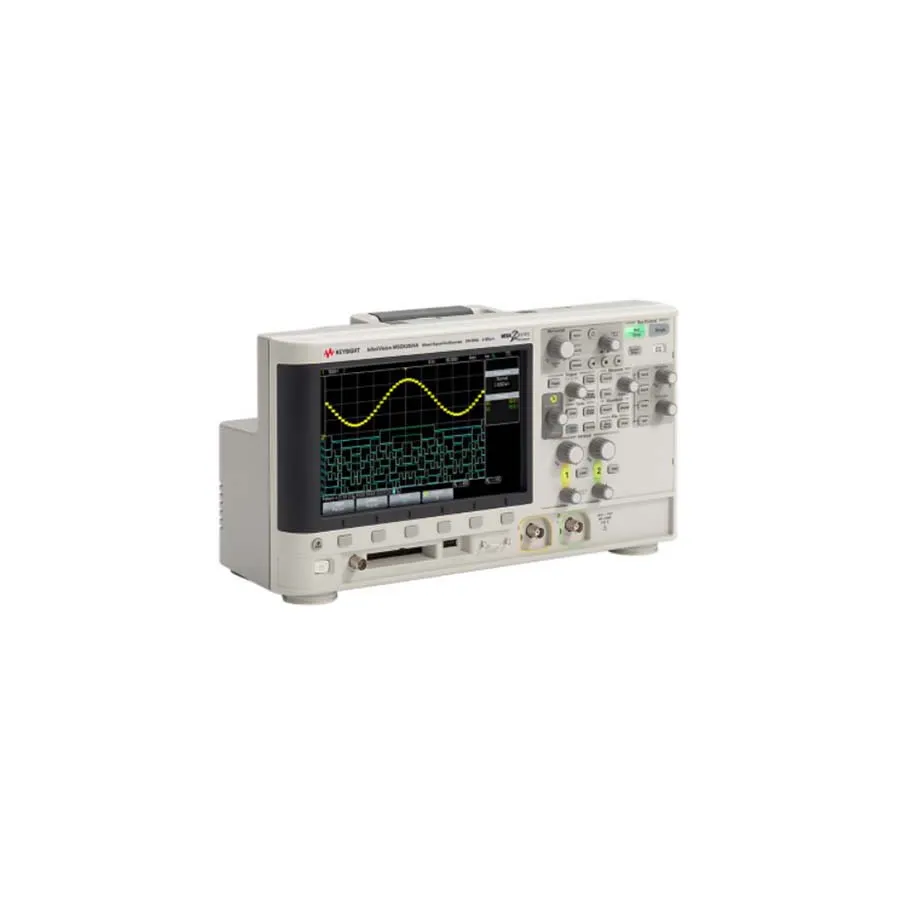

Keysight MSOX2022A Mixed Signal Oscilloscope

Overview

The Keysight MSOX2022A is a 200 MHz mixed-signal oscilloscope delivering double the bandwidth of lower-tier models while maintaining compact size and portability. Ideal for engineers working with high-speed digital circuits, RF applications, and complex embedded systems, it provides the performance needed for demanding measurement tasks in development, manufacturing, and field environments.

Key Features

• 200 MHz bandwidth with 2 analog channels and 8 digital channels for mixed-signal analysis
• 1 GSa/s per channel sampling rate (2 GSa/s half-channel), 1 Mpts memory
• High update rate of 200,000 waveforms per second with MegaZoom IV technology
• 8.5-inch WVGA color display with twice the viewing area of competing models
• Optional 20 MHz WaveGen integrated function generator
• Hardware-accelerated mask testing and segmented memory for protocol analysis
• Multiple connectivity options: USB host/device, optional LAN, VGA, and GPIB
• Compact and lightweight design suitable for portable and fixed installations
• Fully upgradeable platform with five-year warranty

Applications

• High-speed digital circuit design and verification
• RF and microwave signal analysis and characterization
• Fast serial protocol analysis (I2C, SPI, UART, CAN, and more)
• Clock and timing analysis in complex systems
• Professional design engineering and production testing
