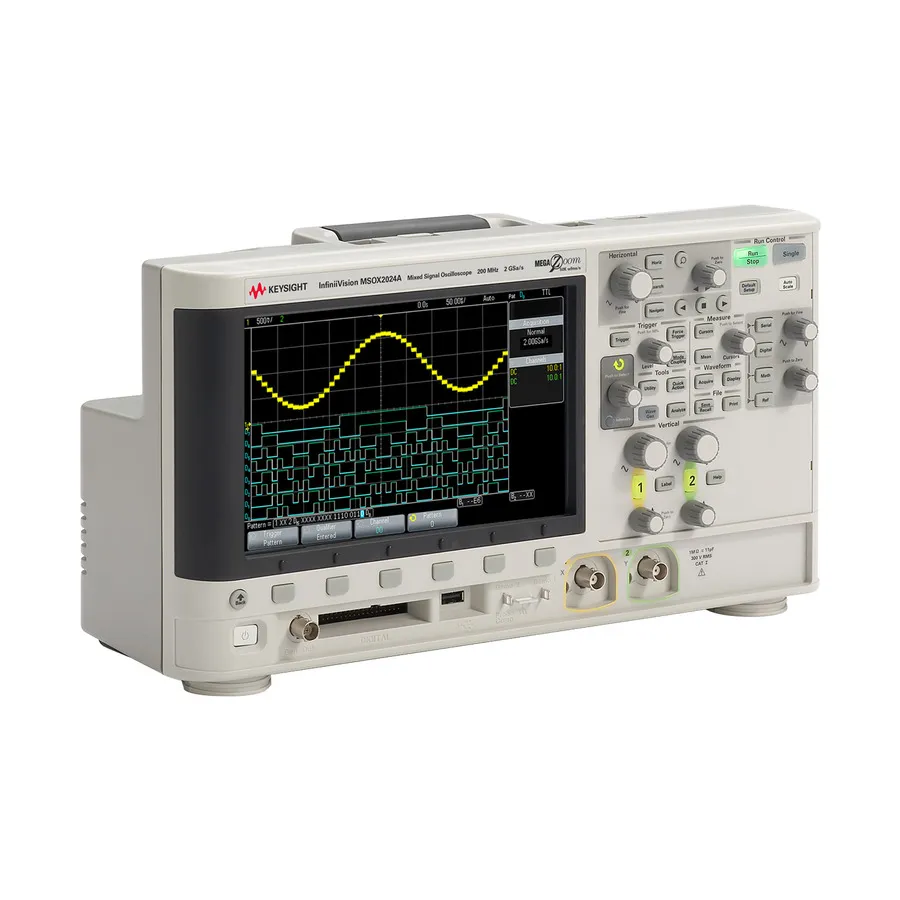

Keysight MSOX2014A Mixed Signal Oscilloscope

Overview

The Keysight MSOX2014A is a 100 MHz mixed-signal oscilloscope offering 4 analog channels for enhanced signal observation and analysis. This model provides the ideal balance of channel density and bandwidth for complex multi-signal debugging, protocol analysis, and system characterization without sacrificing portability or ease of use.

Key Features

• 100 MHz bandwidth with 4 analog channels and 8 digital channels for comprehensive mixed-signal analysis
• 1 GSa/s per channel sampling rate (2 GSa/s half-channel), 1 Mpts memory
• High update rate of 200,000 waveforms per second with MegaZoom IV technology
• 8.5-inch WVGA color display with twice the viewing area of competing models
• Optional 20 MHz WaveGen integrated function generator
• Hardware-accelerated mask testing and segmented memory for protocol analysis
• Multiple connectivity options: USB host/device, optional LAN, VGA, and GPIB
• Compact and lightweight design optimized for lab and field environments
• Fully upgradeable platform with five-year warranty

Applications

• Multi-channel digital and analog circuit debugging
• Complex protocol analysis and serial communication testing
• Power electronics and switching circuit characterization
• Embedded systems development and integration testing
• Professional training and advanced laboratory work
