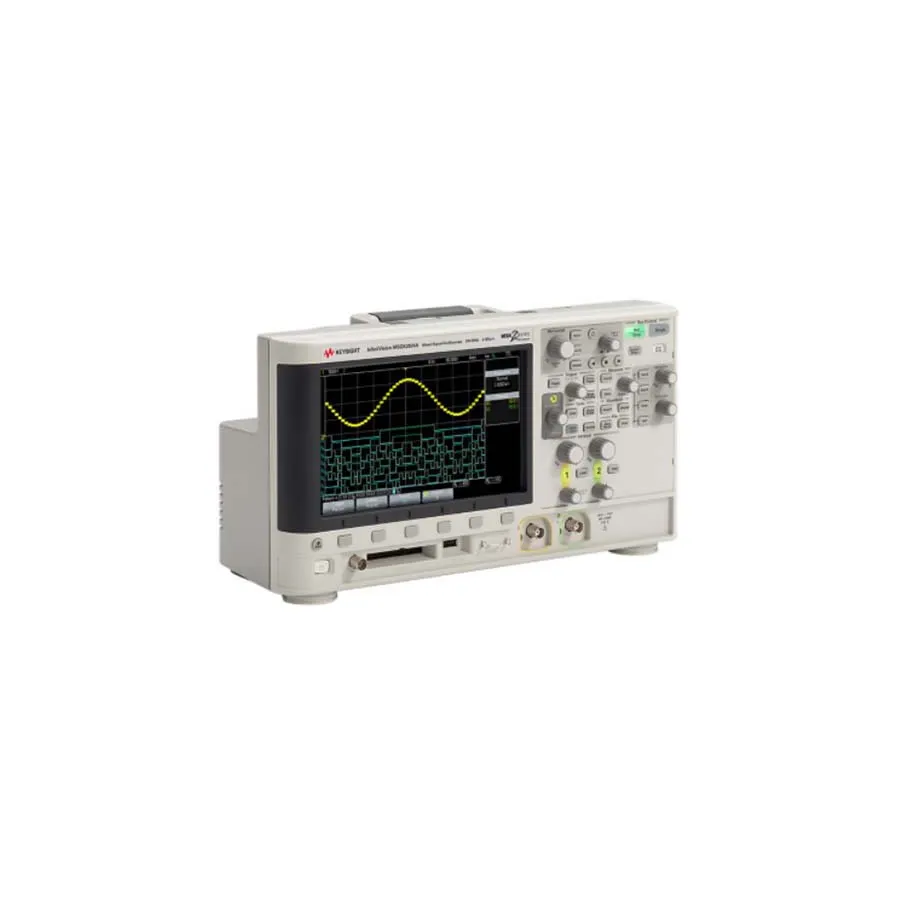

Keysight MSOX2012A Mixed Signal Oscilloscope

Overview

The Keysight MSOX2012A is a 100 MHz mixed-signal oscilloscope designed for engineers and technicians requiring higher bandwidth performance in a compact form factor. It combines 2 analog channels with 8 digital channels for simultaneous analysis of complex digital and analog signals with excellent time correlation.

Key Features

• 100 MHz bandwidth with 2 analog channels and 8 digital channels for mixed-signal analysis
• 1 GSa/s per channel sampling rate (2 GSa/s half-channel), 1 Mpts memory
• High update rate of 200,000 waveforms per second with MegaZoom IV technology
• 8.5-inch WVGA color display with twice the viewing area of competing models
• Optional 20 MHz WaveGen integrated function generator
• Hardware-accelerated mask testing and segmented memory for protocol analysis
• Multiple connectivity options: USB host/device, optional LAN, VGA, and GPIB
• Compact and lightweight design for portable lab and field use
• Fully upgradeable platform with five-year warranty

Applications

• High-speed digital circuit debugging and verification
• Serial protocol analysis and decoding (I2C, SPI, UART, and more)
• Mixed-signal system characterization and troubleshooting
• Design validation and compliance testing
• Educational demonstrations and student training
