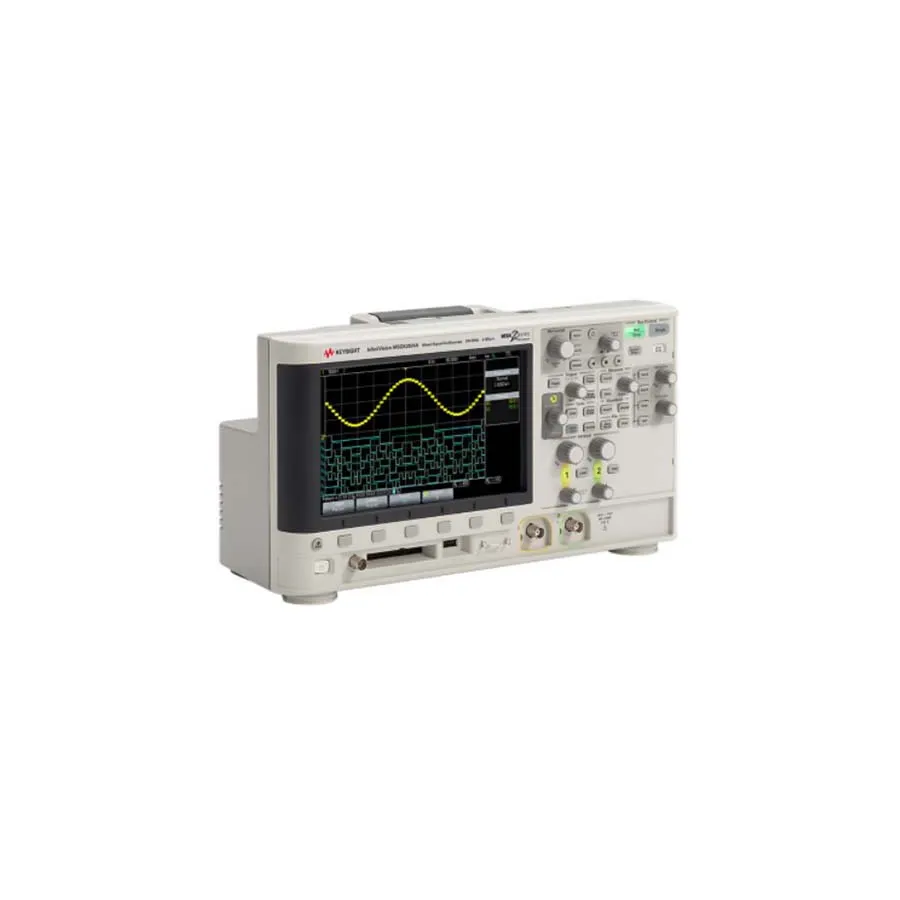

Keysight MSOX2002A Mixed Signal Oscilloscope
Request a quote
Keysight MSOX2002A is a 70 MHz mixed-signal oscilloscope with 2 analog and 8 digital channels, 2 GSa/s sample rate, 1 Mpt memory, and optional 20 MHz function generator.
Product details
| Model | MSOX2002A |
| Manufacturer | Keysight |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Keysight MSOX2002A is a 70 MHz mixed-signal oscilloscope combining compact design with powerful analysis capabilities. With 2 analog channels and 8 digital channels, it serves engineers and technicians in digital circuit debugging, mixed-signal design verification, and educational applications. The optional integrated 20 MHz function generator and comprehensive protocol support provide a versatile platform for design validation and troubleshooting.
Key Features
- 70 MHz analog bandwidth with 2 analog channels
- 8 digital channels for mixed-signal analysis
- 2 GSa/s maximum sample rate per channel
- 1 Mpts memory with 200,000 waveforms/second update rate
- 8.5-inch WVGA color display with intuitive interface
- Optional integrated 20 MHz WaveGen function generator
- Waveform math and FFT analysis
- Hardware serial protocol triggering and decode capabilities
- USB, optional LAN, VGA, and GPIB interfaces
Applications
- Digital circuit debugging and validation
- Mixed-signal design verification
- Serial protocol analysis and troubleshooting
- Educational and training environments
- General-purpose test and measurement
Specifications
| Bandwidth | 70 MHz |
| Analog Channels | 2 |
| Digital Channels | 8 |
| Sampling Rate | 2 GS/s |
| Memory | 1 Mpts |
| Type | MSO |
| Vertical Resolution | 8 bit |
| Display Type | 8.5 WVGA |
| Series | 2000 X-Series |
