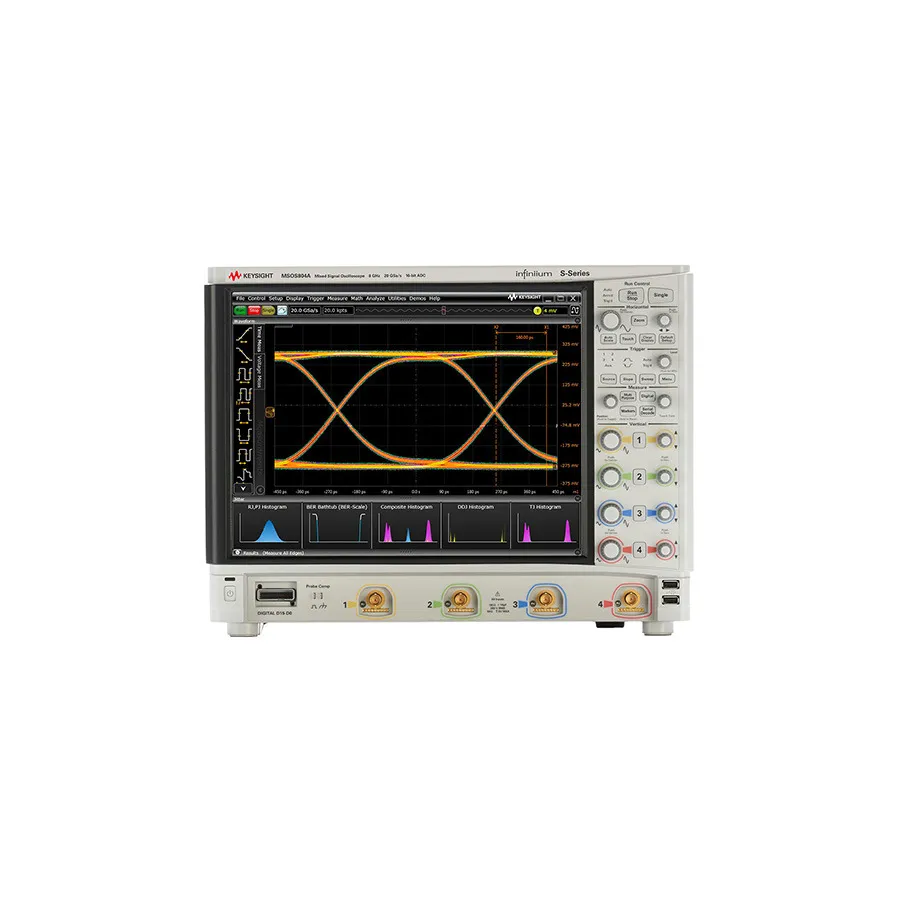

Keysight MSOS804A Mixed Signal Oscilloscope

Overview

The Keysight MSOS804A is an 8 GHz mixed-signal oscilloscope designed for engineers requiring advanced measurement capabilities in the highest-speed digital and analog applications. Part of the Infiniium S-Series platform, it combines world-class signal integrity with up to 16-bit vertical resolution, 10-bit ADC technology, and low-noise front-end design. With 4 analog channels, 16 digital channels, and extensive protocol and compliance software support, it is ideal for design verification, compliance testing, and in-depth signal analysis of complex high-speed circuits.

Key Features

• 8 GHz bandwidth
• 4 analog channels plus 16 digital channels for comprehensive signal analysis
• Up to 16-bit vertical resolution with advanced system architecture
• 20 GSa/s maximum sample rate with 100 Mpts/channel standard memory
• 8.1 bits average system ENOB for superior signal integrity
• 15-inch capacitive touch screen with Windows 10 OS
• 256 GB removable SSD for fast boot and reliability
• Comprehensive protocol, compliance, and analysis software support

Applications

• High-speed digital circuit debugging and validation
• Compliance testing and verification
• Advanced signal integrity analysis
• Protocol decoding and analysis

Included Accessories

• Four N2873A 500-MHz passive probes
• Probe accessory pouch
• 8 GHz BNC calibration cable
• Front panel cover
• Localized power cord
• Keyboard and mouse
• 16-channel flying lead logic probe and calibration fixture (MSO models)
