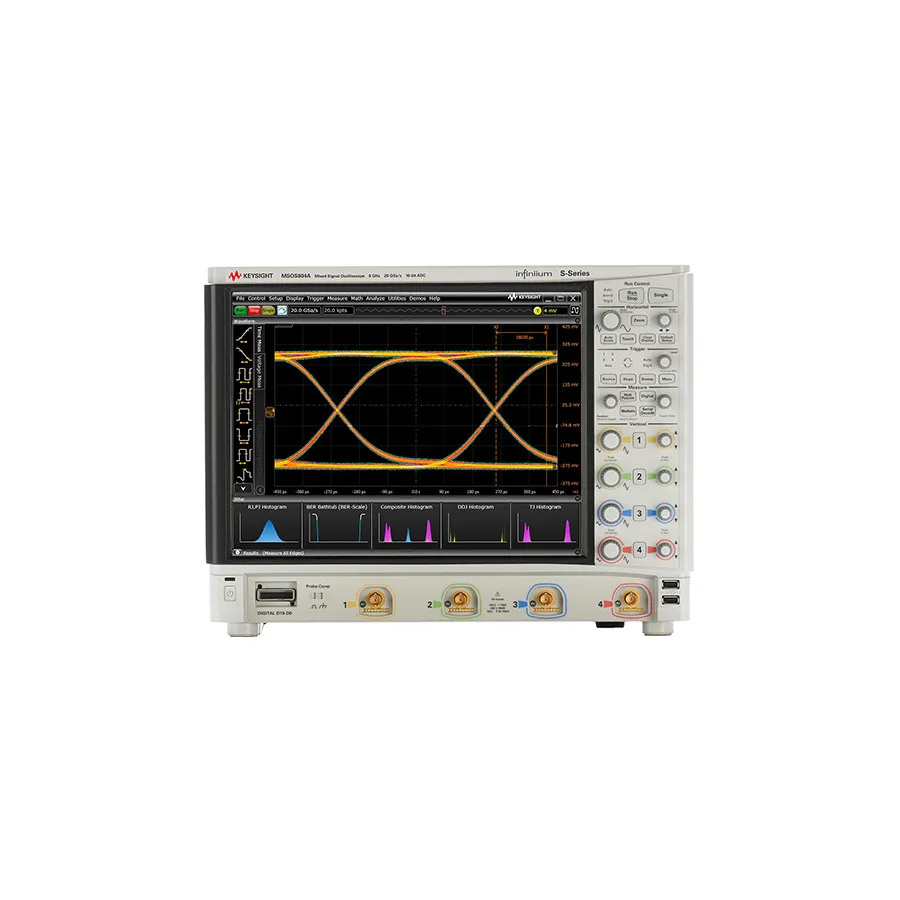

Keysight MSOS604A Mixed Signal Oscilloscope

Overview

The Keysight MSOS604A is a 6 GHz mixed-signal oscilloscope designed for engineers and technicians who need superior signal integrity and measurement accuracy in high-speed digital and analog applications. Part of the Infiniium S-Series platform, it combines a 10-bit ADC with low-noise front-end technology to achieve up to 16 bits of vertical resolution. With 4 analog channels and 16 digital channels, fast waveform capture rates, and a large touchscreen display, it provides comprehensive analysis capabilities for design debugging, compliance testing, and signal integrity analysis.

Key Features

• 6 GHz bandwidth, upgradable to 8 GHz
• 4 analog channels plus 16 digital channels for comprehensive signal analysis
• Up to 16-bit vertical resolution with advanced system architecture
• 20 GSa/s maximum sample rate with 100 Mpts/channel standard memory
• 8.1 bits average system ENOB for superior signal integrity
• 15-inch capacitive touch screen with Windows 10 OS
• 256 GB removable SSD for fast boot and reliability
• Comprehensive protocol, compliance, and analysis software support

Applications

• Design debugging and validation of high-speed digital circuits
• Compliance testing and verification
• Signal integrity analysis
• Protocol decoding and analysis

Included Accessories

• Four N2873A 500-MHz passive probes
• Probe accessory pouch
• 8 GHz BNC calibration cable
• Front panel cover
• Localized power cord
• Keyboard and mouse
• 16-channel flying lead logic probe and calibration fixture (MSO models)
