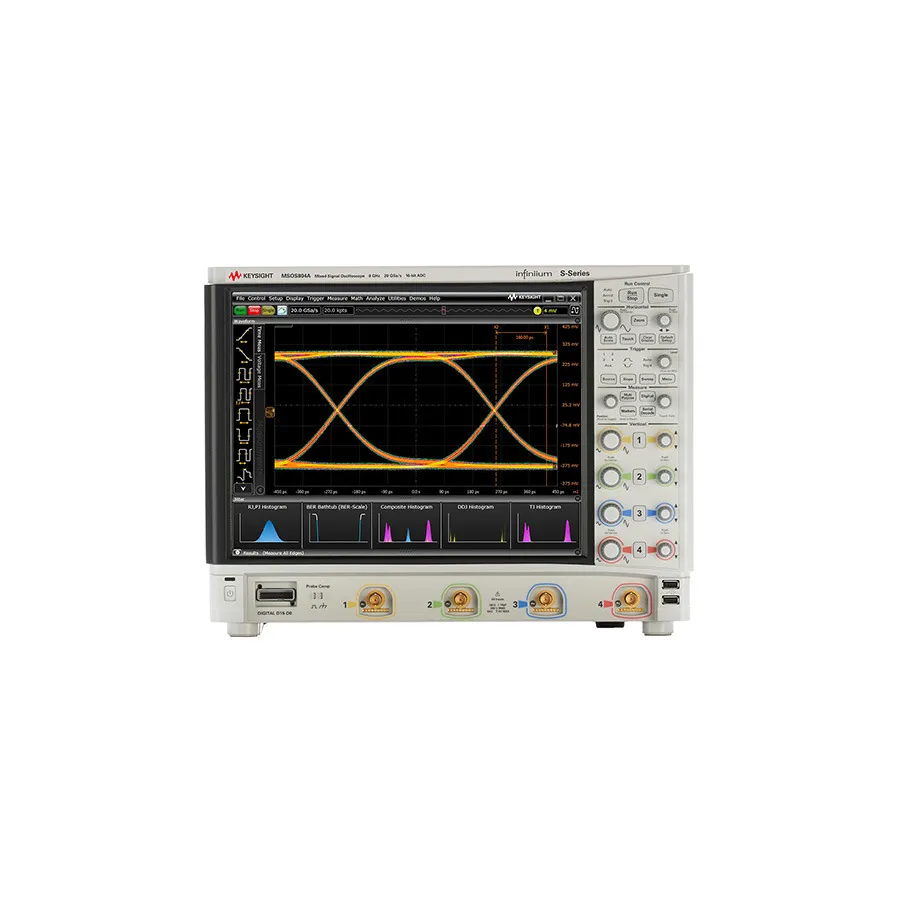

Keysight MSOS254A Mixed Signal Oscilloscope

Overview

The Keysight MSOS254A is a mixed-signal oscilloscope in the S-Series line, designed for high-performance signal measurement and device debugging. It combines superior signal integrity with advanced debugging capabilities, offering 2.5 GHz bandwidth (upgradable to 8 GHz) with 4 analog and 16 digital channels. The S-Series platform delivers world-class signal fidelity through advanced front-end, time base, and ADC technology, making it ideal for verifying design compliance and troubleshooting complex signals.

Key Features

• 2.5 GHz bandwidth, upgradable to 8 GHz
• 4 analog plus 16 digital channels
• Up to 16 bits of vertical resolution in high-resolution mode
• 20 GSa/s maximum sample rate with 100 Mpts/channel memory
• 8.1 bits average system ENOB at full bandwidth
• 15" capacitive touch screen with multi-touch support
• Solid-state drive for fast boot and high reliability
• Comprehensive protocol, compliance, and analysis software suite

Applications

• Design debugging and signal integrity analysis
• Compliance verification testing
• High-speed digital signal troubleshooting
• Protocol analysis and monitoring

Included Accessories

• Four N2873A 500-MHz passive probes
• Probe accessory pouch
• Localized power cord
• Front panel cover
• 8 GHz BNC calibration cable
• Keyboard and mouse
• 16-channel flying lead logic probe and calibration fixture
