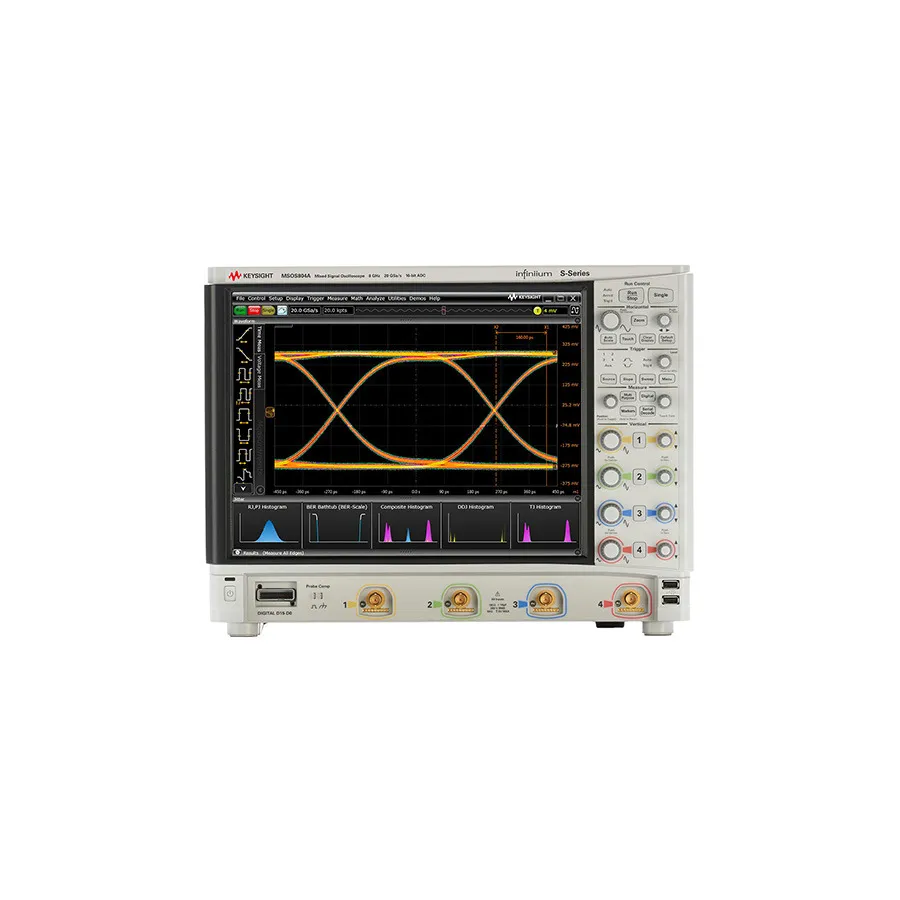

Keysight MSOS054A Mixed Signal Oscilloscope

Overview

The Keysight MSOS054A is a high-performance mixed signal oscilloscope from the Infiniium S-Series, engineered to deliver superior measurements for design debug and compliance verification. It combines advanced signal integrity, low jitter, and high vertical resolution to provide accurate representation of device performance. The S-Series platform features an advanced front-end, superior time base, and high-speed ADC technology for unmatched measurement capability.

Key Features

• 500 MHz bandwidth, upgradeable to 8 GHz
• 4 analog channels plus 16 digital channels
• Up to 16-bit vertical resolution with advanced system architecture
• 20 GSa/s maximum sample rate
• 100 Mpts standard memory per channel
• Average system ENOB of 8.1 bits at full bandwidth
• 10-bit ADC and low-noise front-end for superior signal integrity
• 15-inch capacitive multi-touch display with solid-state drive
• Windows 10 operating system with 256 GB removable SSD
• High-speed digital debug tools for comprehensive troubleshooting
• Integrated protocol, compliance, and analysis software options
• Compatible with Keysight probes and applications

Included Accessories

• Four N2873A 500-MHz passive probes
• Probe accessory pouch
• Localized power cord
• Front panel cover
• 8 GHz BNC calibration cable
• Keyboard and mouse
• 16-channel flying lead logic probe and calibration fixture (MSO models)

Applications

• High-speed circuit design and validation
• Signal integrity and jitter analysis
• Protocol debugging and verification
• Compliance testing for serial standards
• Power integrity measurements
