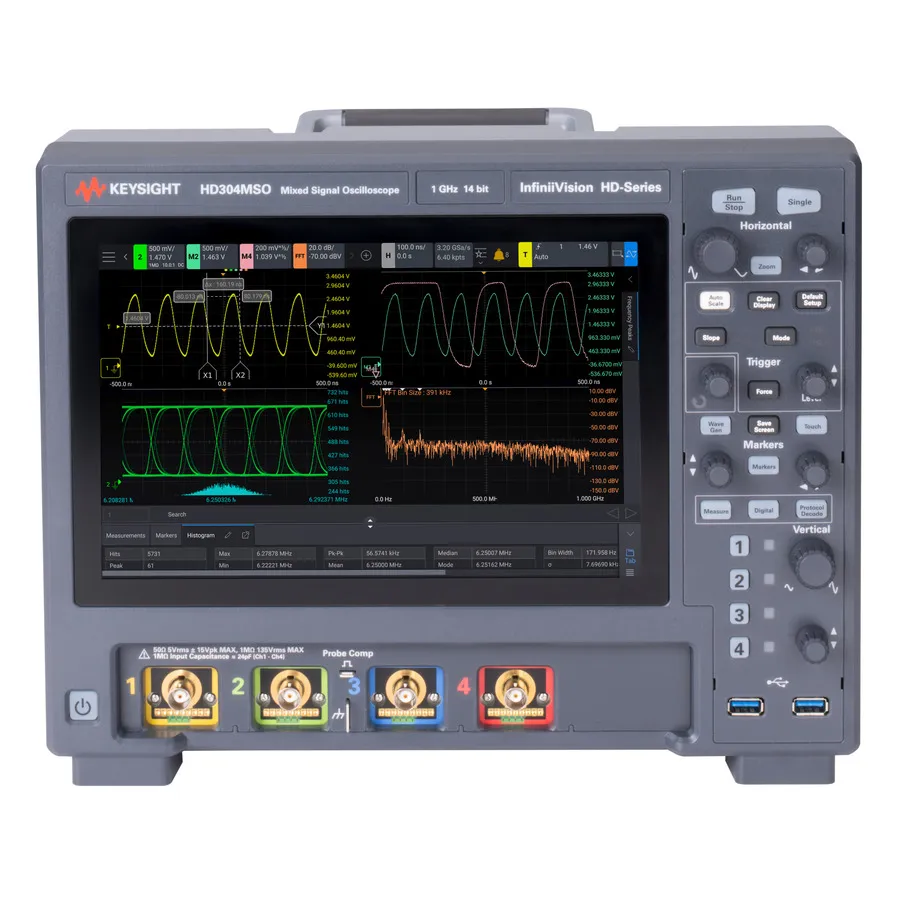

Keysight HD304MSO/500 InfiniiVision Mixed Signal Oscilloscope
Keysight HD304MSO/500 is a 500 MHz mixed signal oscilloscope with 4 analog channels, 14-bit ADC, and deep 20 Mpts memory for precision signal analysis.
Product details
| Model | HD304MSO/500 |
| Manufacturer | Keysight |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Keysight HD304MSO/500 is a 500 MHz mixed signal oscilloscope featuring a 14-bit ADC and 50 µVRMS noise floor for high-precision signal measurement. With 4 analog and 16 digital channels (via optional MSO probe), it delivers 4x the vertical resolution of conventional oscilloscopes in this class, enabling capture of small signals and subtle anomalies critical for design verification.
Built for both debugging and automated testing, the HD3 Series includes deep memory (20 Mpts), high waveform update rates exceeding 1,000,000 waveforms per second, zone triggering for signal isolation, and Fault Hunter software for automated error detection. Serial bus decoding, advanced analysis tools (FFT, histograms, Bode plots), and an intuitive 10.1-inch touchscreen interface round out the feature set.
Key Features
- 500 MHz bandwidth
- 4 analog channels and 16 digital channels (optional MSO probe)
- 14-bit ADC with 4x vertical resolution compared to competing oscilloscopes
- Sample rate of 3.2 GSa/s on all channels
- 20 Mpts deep memory for extended capture duration
- 50 µVRMS noise floor with bandwidth limiting options
- Waveform update rate exceeding 1,000,000 waveforms per second
- Zone trigger for isolating specific signal regions
- Fault Hunter software for automated error detection
- Built-in function and arbitrary waveform generator
- Advanced analysis tools: FFT, histograms, Bode plots, mask testing
- Serial bus decoding (I2C, SPI, UART/RS232/RS485)
- 10.1-inch capacitive touch gesture-enabled display
Applications
- Digital system debugging and fault detection
- Signal characterization and analysis in R&D environments
- Automated testing and validation with Fault Hunter
- Frequency response analysis and Bode measurements
- Serial protocol decoding and analysis
- Design verification and validation
Included Accessories
- N2843A Passive probe 500 MHz 10:1 attenuation (1 per channel)
- HD3MSO 16 digital channel MSO cable
- CD containing user's guide, service guide, and programmer's manual
- Soft copy of Certificate of Calibration
Specifications
| Bandwidth | 500 MHz |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Sampling Rate | 3.2 GS/s |
| Memory | 20 Mpts |
| Type | MSO |
| Vertical Resolution | 14 bit |
| Display Type | 10.1 Capacitive Color Touch |
| Series | HD3 Series |
| Interface | USB,LAN |
