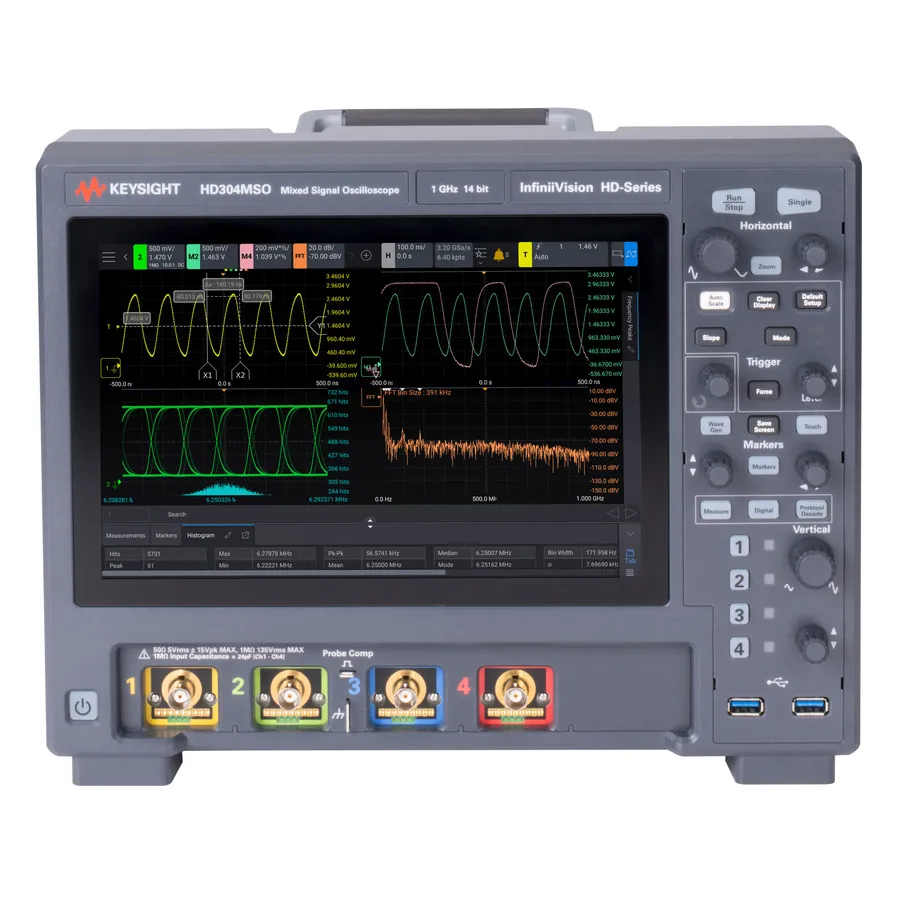

Keysight HD304MSO/01G InfiniiVision Mixed Signal Oscilloscope

Overview

The Keysight HD304MSO/01G is a 1 GHz mixed signal oscilloscope with 4 analog and 16 optional digital channels. Part of the InfiniiVision HD3 Series, it delivers high-performance signal analysis in a compact form factor with a 14-bit ADC and exceptionally low noise floor, ideal for capturing and characterizing complex signals in high-speed embedded systems and RF applications.

Key Features

• 1 GHz bandwidth for high-speed signal measurement
• 14-bit ADC with 4x the vertical resolution of standard oscilloscopes
• 50 µVRMS noise floor for precise measurement of small signals
• Industry-leading waveform update rate (>1,000,000 waveforms/second)
• 20 Mpts deep memory with dedicated chips per channel
• Zone triggering to isolate and capture signal anomalies and glitches
• Fault Hunter software for automated error detection and characterization
• Serial bus decoding: I2C, SPI, UART, RS232, RS485
• Advanced analysis: FFT, histograms, Bode plots, mask testing
• 3.2 GSa/s maximum sample rate across all channels simultaneously

Applications

• High-speed embedded system debugging and validation
• Digital signal integrity and timing analysis
• RF and microwave signal characterization
• Serial protocol analysis and bus debugging
• Power electronics and circuit characterization

Included Accessories

• N2843A passive probe, 500 MHz, 10:1 attenuation (1 per channel)
• HD3MSO 16-channel digital MSO cable
• Certificate of Calibration (digital copy)
• User guide, service guide, and programmer's manual on CD
