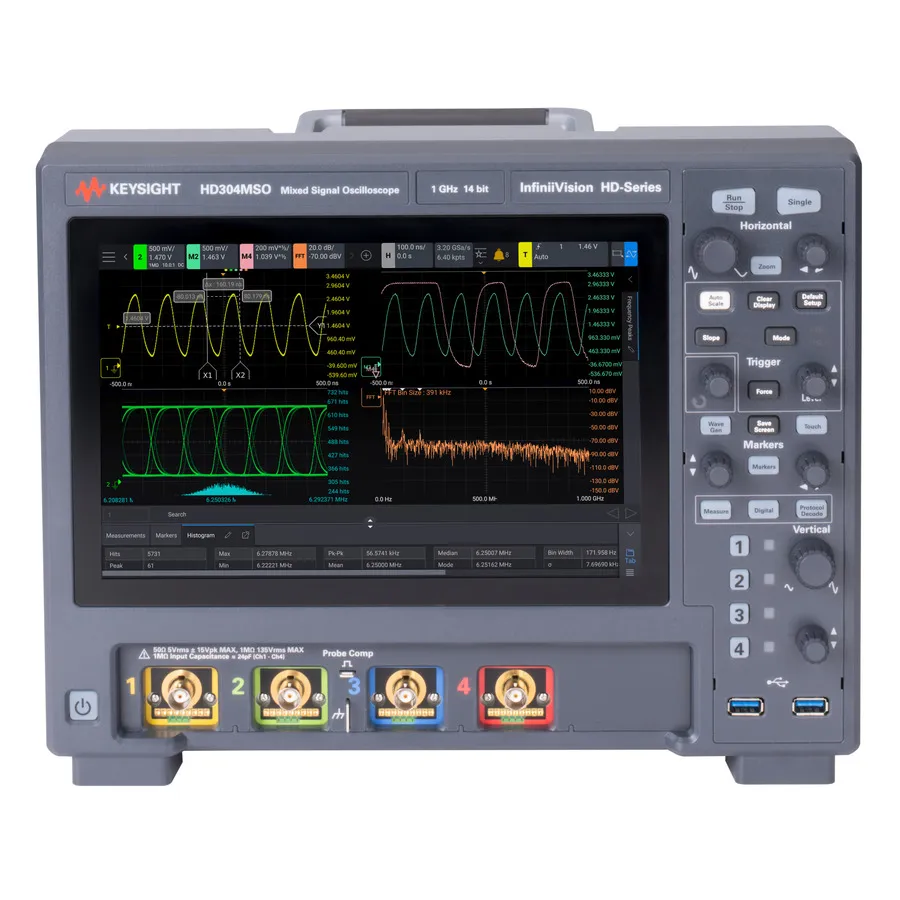

Keysight HD304MSO InfiniiVision Mixed Signal Oscilloscope

Overview

The Keysight HD304MSO is an upgradable 4-channel mixed signal oscilloscope with 16 optional digital channels, starting at 200 MHz bandwidth. It can be upgraded in the field to 350 MHz, 500 MHz, or 1 GHz using field-installable software licenses. The InfiniiVision HD3 Series architecture provides a 14-bit ADC with 4x the vertical resolution of standard oscilloscopes and an exceptionally low 50 µVRMS noise floor, making it suitable for advanced embedded systems analysis and signal characterization.

Key Features

• Upgradable bandwidth starting at 200 MHz (field-installable licenses for 350 MHz, 500 MHz, 1 GHz)
• 4 analog channels plus 16 optional digital channels
• 14-bit ADC with 4x the vertical resolution of standard oscilloscopes
• 50 µVRMS noise floor for precise measurement of small signals
• Industry-leading waveform update rate (>1,000,000 waveforms/second)
• 20 Mpts deep memory with dedicated chips per channel
• Zone triggering to isolate and capture signal anomalies and glitches
• Fault Hunter software for automated error detection and characterization
• Serial bus decoding: I2C, SPI, UART, RS232, RS485
• Advanced analysis: FFT, histograms, Bode plots, mask testing

Applications

• Embedded system debugging and validation
• Digital signal integrity and timing analysis
• Serial protocol analysis and bus debugging
• Power electronics and circuit characterization
• Automated fault detection and product testing

Included Accessories

• N2843A passive probe, 500 MHz, 10:1 attenuation (1 per channel)
• HD3MSO 16-channel digital MSO cable
• Certificate of Calibration (digital copy)
• User guide, service guide, and programmer's manual on CD
