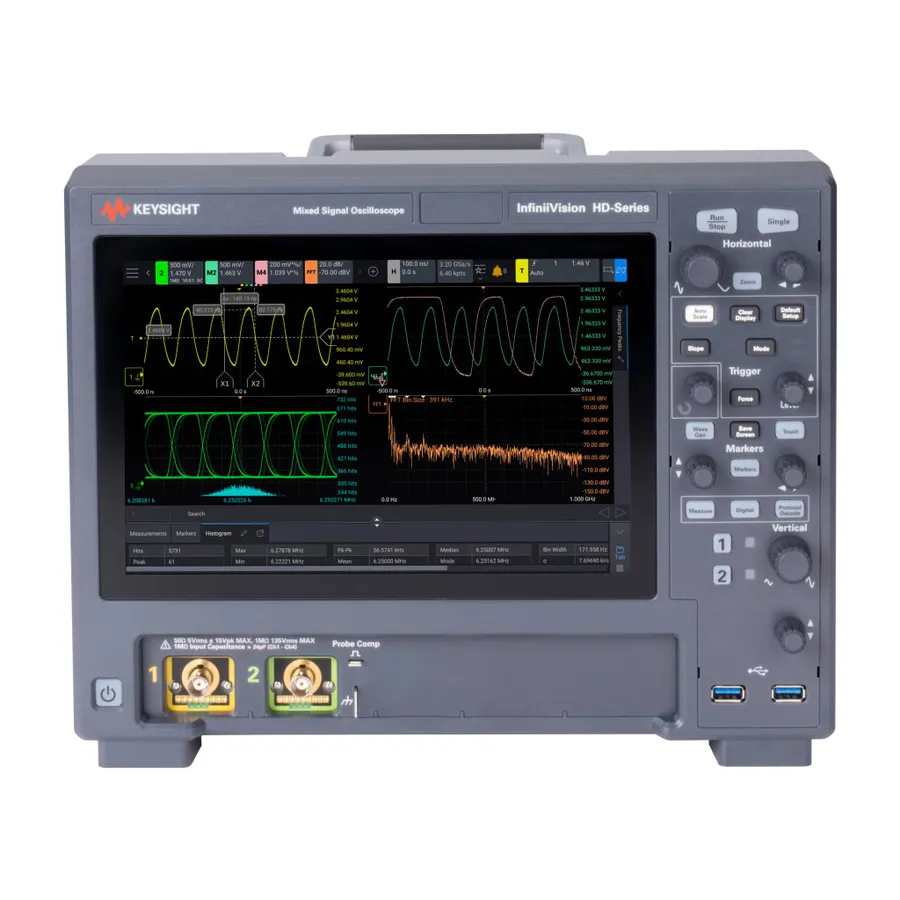

Keysight HD302MSO/500 InfiniiVision Mixed Signal Oscilloscope

Overview

The Keysight HD302MSO/500 is a 500 MHz mixed signal oscilloscope with 2 analog and 16 optional digital channels. Part of the InfiniiVision HD3 Series, it delivers high-performance signal analysis in a compact form factor with a 14-bit ADC and exceptionally low noise floor, ideal for capturing and characterizing complex signals in embedded systems and digital electronics.

Key Features

• 14-bit ADC with 4x the vertical resolution of standard oscilloscopes
• 50 µVRMS noise floor for precise measurement of small signals
• Industry-leading waveform update rate (>1,000,000 waveforms/second)
• 20 Mpts deep memory with dedicated chips per channel
• Zone triggering to isolate and capture signal anomalies and glitches
• Fault Hunter software for automated error detection and characterization
• Serial bus decoding: I2C, SPI, UART, RS232, RS485
• Advanced analysis: FFT, histograms, Bode plots, mask testing
• Built-in function and arbitrary waveform generator
• 3.2 GSa/s maximum sample rate across all channels simultaneously

Applications

• Embedded system debugging and validation
• Digital signal integrity and timing analysis
• Serial protocol analysis and bus debugging
• Power electronics and circuit characterization
• Automated fault detection and product testing

Included Accessories

• N2843A passive probe, 500 MHz, 10:1 attenuation (1 per channel)
• HD3MSO 16-channel digital MSO cable
• Certificate of Calibration (digital copy)
• User guide, service guide, and programmer's manual on CD
