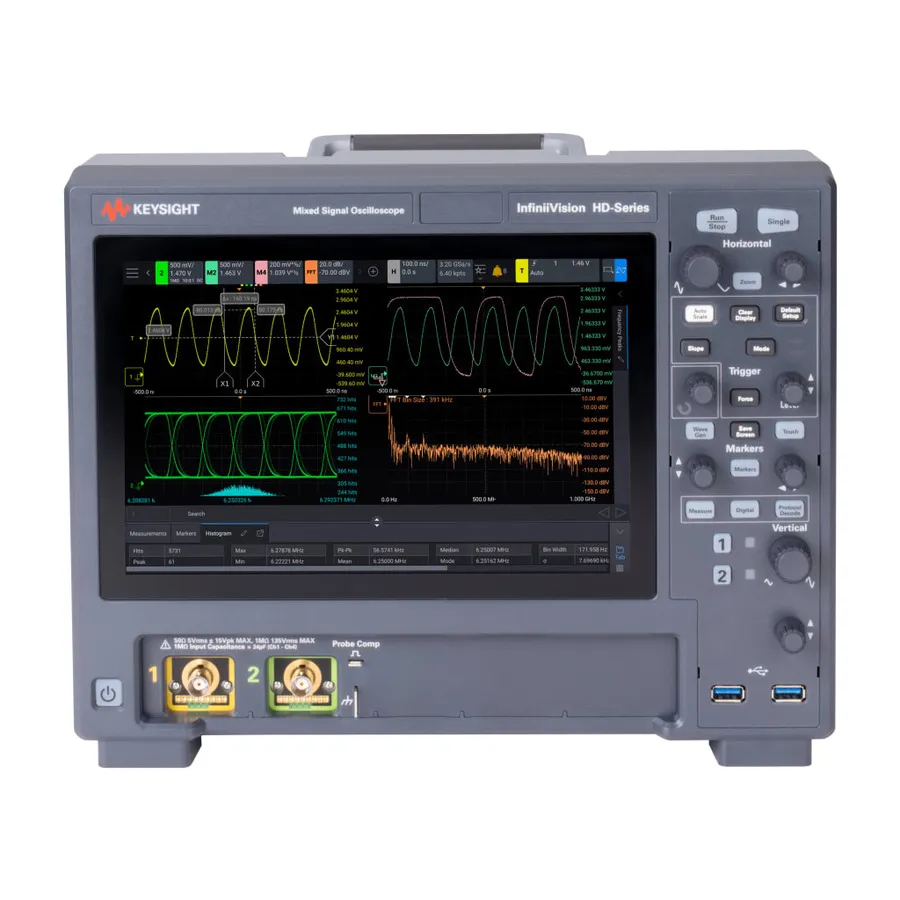

Keysight HD302MSO Mixed Signal Oscilloscope

Overview

The Keysight HD302MSO is a 200 MHz mixed signal oscilloscope from the InfiniiVision HD3 Series. It offers industry-leading resolution with a 14-bit analog-to-digital converter (ADC) providing four times the vertical accuracy of 12-bit oscilloscopes, combined with a noise floor of 55 µVRMS for capturing small signals with precision.

Key Features

• 200 MHz bandwidth
• 2 analog channels with 14-bit ADC for 4x vertical resolution
• 16 digital channels (optional)
• Maximum sample rate: 3.2 GSa/s on all channels
• Deep memory: 20 Mpts (megapoints)
• Exceptional waveform update rate: >1,000,000 waveforms/second
• Noise floor: 55 µVRMS at full bandwidth
• 10.1-inch capacitive touch gesture-enabled display
• Advanced triggering including zone trigger for capturing glitches
• Built-in function/arbitrary waveform generator
• Serial protocol decoding (I2C, SPI, UART/RS232/RS485)
• FFT, histogram, and Bode plot analysis
• Mask testing and Fault Hunter automated error detection

Applications

• Digital signal characterization and debugging
• Power supply and converter analysis
• Frequency response and Bode plot measurements
• Mixed-signal system testing and validation
• Signal glitch detection and anomaly hunting

Included Accessories

• N2843A passive probe 500 MHz 10:1 attenuation (1 per analog channel)
• HD3MSO 16 digital channel MSO cable
• Certificate of calibration (soft copy)
• User's guide, service guide, and programmer's manual on CD
