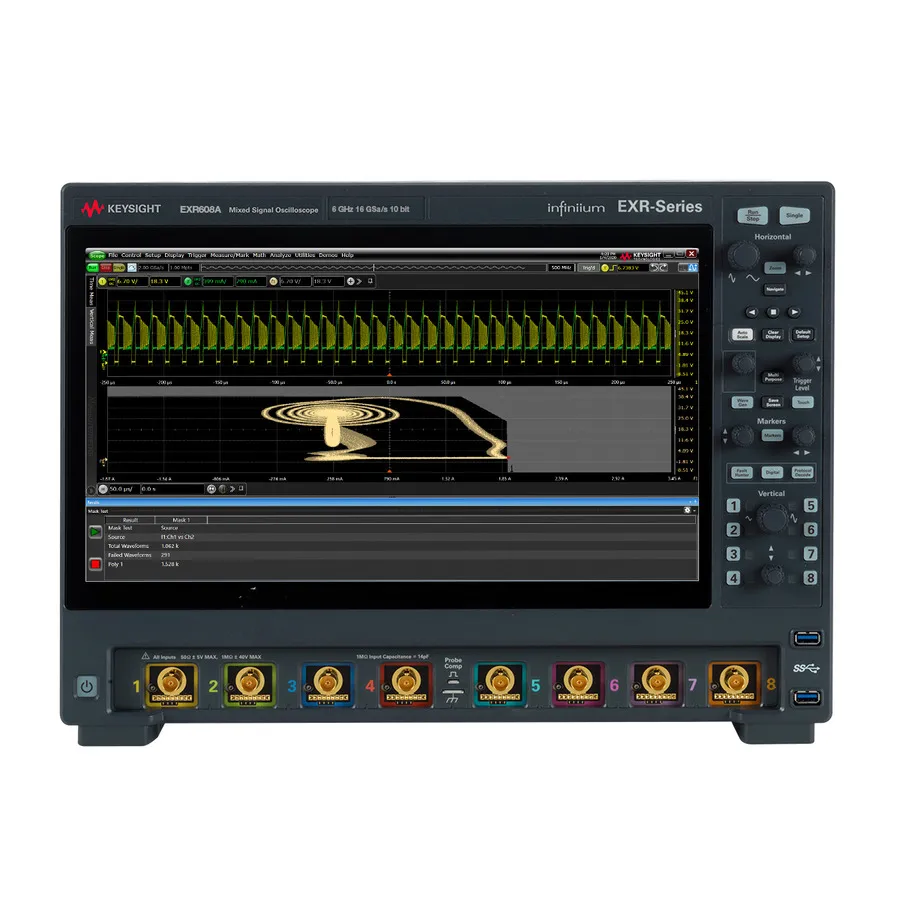

Keysight EXR608A Infiniium Real-Time Oscilloscope

Overview

The Keysight Infiniium EXR608A is an 8-channel real-time oscilloscope delivering up to 6 GHz of bandwidth and 16 GSa/s sample rate on every channel. With 100 Mpts of standard memory per channel, flexible three-stage triggering, and a 15.6-inch Full HD touchscreen display, the EXR608A is designed for comprehensive signal integrity analysis in demanding testing applications.

Key Features

• 8 channels with 6 GHz bandwidth per channel
• Real-time sample rate of 16 GSa/s on all analog channels
• 100 Mpts memory depth per channel
• Rise/fall time: 71.7 ps
• Vertical resolution: 10 bits (up to 16 bits with high-resolution mode)
• Real-time update rate: >200,000 waveforms/sec
• Multiple trigger types: Edge, Pulse Width, Glitch, Runt, Time Out, Pattern, Burst
• Serial Data Analysis and Fault Hunter tools
• Math functions: Sources, Functions, FFT, Histograms
• 15.6-inch capacitive multi-touch Full HD display (1920x1080)
• LAN and USB 3.0 connectivity (6 host, 1 device port)
• Multiscope capability to combine two oscilloscopes for 16-channel testing

Applications

• High-speed digital signal analysis and validation
• Serial protocol debugging and analysis
• Power integrity and signal integrity testing
• Design verification and compliance testing
• Mixed-signal circuit characterization
