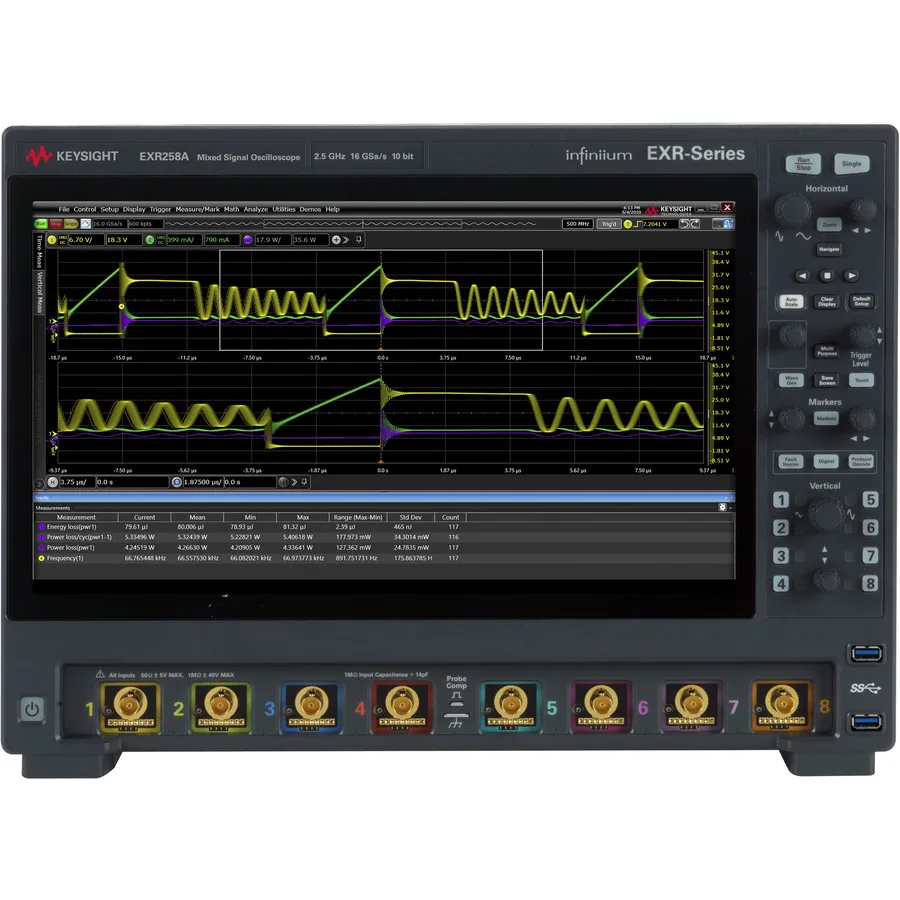

Keysight EXR258A Mixed Signal Oscilloscope

Overview

The Keysight Infiniium EXR258A is a 2.5 GHz 8-channel mixed signal oscilloscope offering maximum channel capacity for comprehensive multi-signal analysis. With a 10-bit ADC providing simultaneous 16 GSa/s sampling on all channels, 100 Mpts per channel memory, and 500 GB SSD storage, the EXR258A represents the pinnacle of the EXR-Series performance.

Like the broader EXR-Series, it integrates seven instruments in one—oscilloscope, logic analyzer, arbitrary waveform generator, frequency response analyzer, counter, voltmeter, and protocol analyzer. Its fully upgradeable architecture enables users to expand bandwidth and capabilities through software licenses, protecting instrument investments long-term.

Key Features

• 2.5 GHz bandwidth with 8 analog channels and 16 digital channels
• 10-bit ADC with 16 GSa/s simultaneous sampling on all channels
• 100 Mpts per channel memory with 500 GB SSD storage
• Ultra-low noise front end with noise as low as 43 µV and 9.0 bits ENOB
• 50+ automated voltage and timing measurements
• Integrated logic analyzer, AWG, frequency response analyzer, counter, DVM, and protocol analyzer
• Fully upgradeable via software licenses for bandwidth, channels, and applications
• Hardware-accelerated plotting, segmented memory, history mode, and Fault Hunter
• Eye diagrams, clock recovery, and FFT analysis

Applications

• Debugging high-speed digital and mixed-signal circuits
• Signal integrity and power integrity analysis
• Clock recovery and jitter measurement
• Eye diagram and timing analysis
• Serial protocol decoding and analysis
• Waveform capture and historical data playback

Included Accessories

• Passive Probe, 10:1, 500 MHz (4 or 8)
• 50 Ω Calibration Cable, 1 meter
• Accessory Pouch
• Protective Front Cover
• Local Power Cord
• Full-Size Keyboard
• Optical Scroll Wheel Mouse
• 1 Year Factory Calibration Certificate
• Safety Leaflets
• Probe Selection Guide
