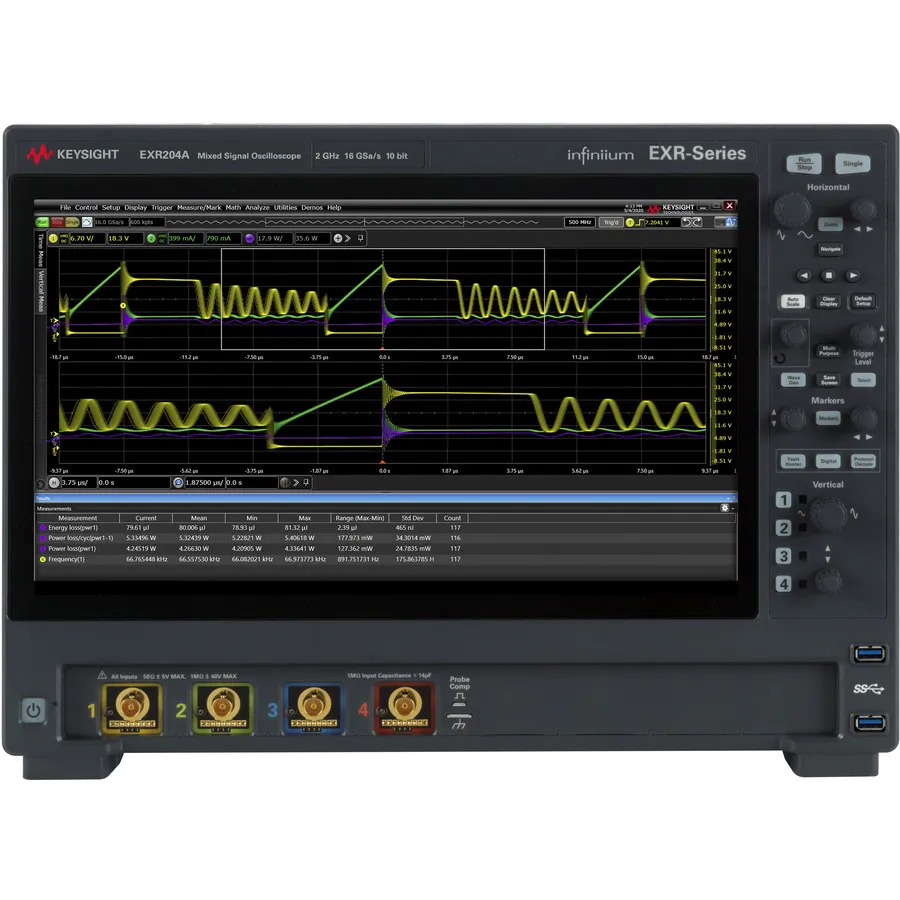

Keysight EXR204A Mixed Signal Oscilloscope

Overview

The Keysight Infiniium EXR204A is a 4-channel, 2 GHz mixed signal oscilloscope engineered for high-speed signal integrity analysis and advanced debugging of cutting-edge digital designs. Featuring a 10-bit ADC with 16 GS/s sample rate on all channels simultaneously, it delivers superior vertical resolution and minimal noise for precise high-bandwidth measurement.

Key Features

• 4 analog channels with 2 GHz bandwidth
• 16 GS/s sample rate on all channels simultaneously
• 10-bit ADC with 43 µV noise floor and 9.0 bits ENOB with hardware filtering
• 100 Mpts per-channel memory
• 500 GB internal SSD storage
• Hardware-accelerated plotting for fast waveform display
• Integrated 7-in-1 instrument: oscilloscope, logic analyzer, arbitrary waveform generator, frequency response analyzer, counter, voltmeter, and protocol analyzer
• Eye diagrams and clock recovery for signal integrity measurement
• FFT analysis and 50+ automatic voltage and timing measurements
• Fully expandable – expand to 8 channels, increase bandwidth further, and add optional instruments via software license

Applications

• Power delivery and signal integrity analysis
• Mixed-signal debugging and validation
• High-speed digital design verification
• Protocol analysis and compliance testing
• Embedded system development and troubleshooting

Included Accessories

• Passive Probe, 10:1, 500 MHz (quantity: 4)
• 50Ω Calibration Cable, 1 meter
• Accessory Pouch
• Protective Front Cover
• Full-Size Keyboard
• Optical Scroll Wheel Mouse
• Local Power Cord
• 1 Year Factory Calibration Certificate
