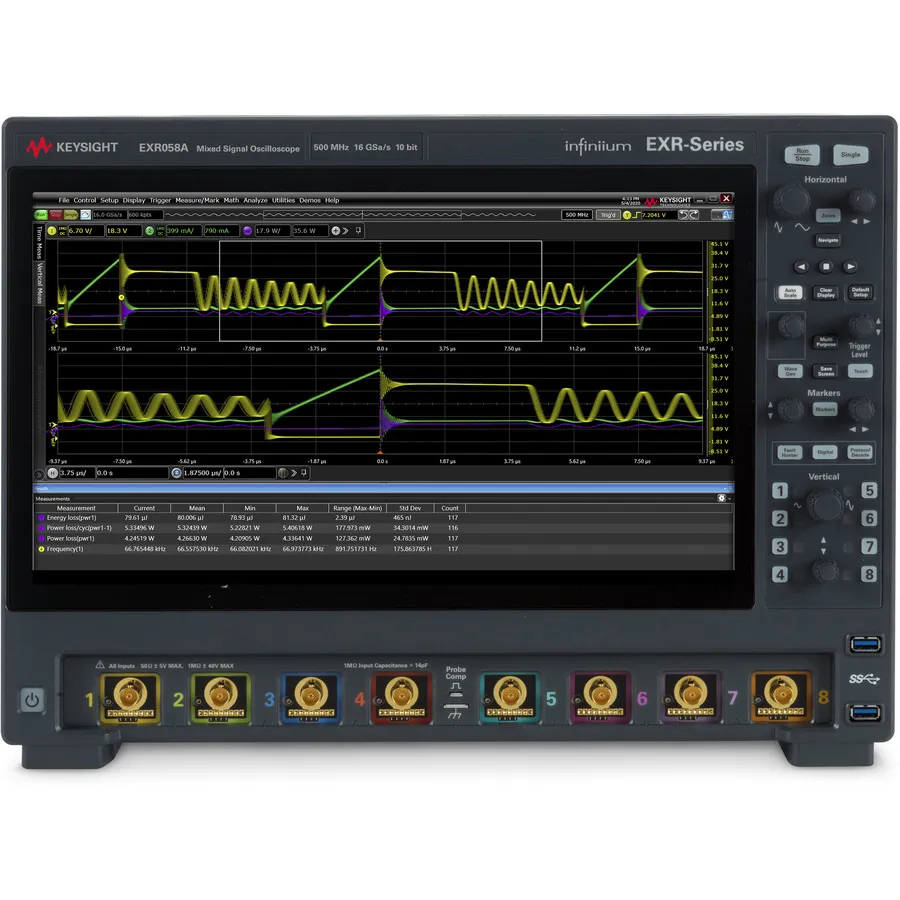

Keysight EXR058A Mixed Signal Oscilloscope

Overview

The Keysight Infiniium EXR058A is an 8-channel, 500 MHz mixed signal oscilloscope engineered for advanced signal integrity analysis and debugging. Featuring a 10-bit ADC with 16 GS/s sample rate on all channels simultaneously, it delivers exceptional vertical resolution and minimal noise for complex signal measurement and analysis.

Key Features

• 8 analog channels with 500 MHz bandwidth
• 16 GS/s sample rate on all channels simultaneously
• 10-bit ADC with 43 µV noise floor and 9.0 bits ENOB with hardware filtering
• 100 Mpts per-channel memory
• 500 GB internal SSD storage
• Hardware-accelerated plotting for fast waveform display
• Integrated 7-in-1 instrument: oscilloscope, logic analyzer, arbitrary waveform generator, frequency response analyzer, counter, voltmeter, and protocol analyzer
• Eye diagrams and clock recovery for signal integrity measurement
• FFT analysis and 50+ automatic voltage and timing measurements
• Fully expandable – expand channels, bandwidth, and add optional instruments via software license

Applications

• Power delivery and signal integrity analysis
• Mixed-signal debugging and validation
• High-speed digital design verification
• Protocol analysis and compliance testing
• Embedded system development and troubleshooting

Included Accessories

• Passive Probe, 10:1, 500 MHz (quantity: 8)
• 50Ω Calibration Cable, 1 meter
• Accessory Pouch
• Protective Front Cover
• Full-Size Keyboard
• Optical Scroll Wheel Mouse
• Local Power Cord
• 1 Year Factory Calibration Certificate
