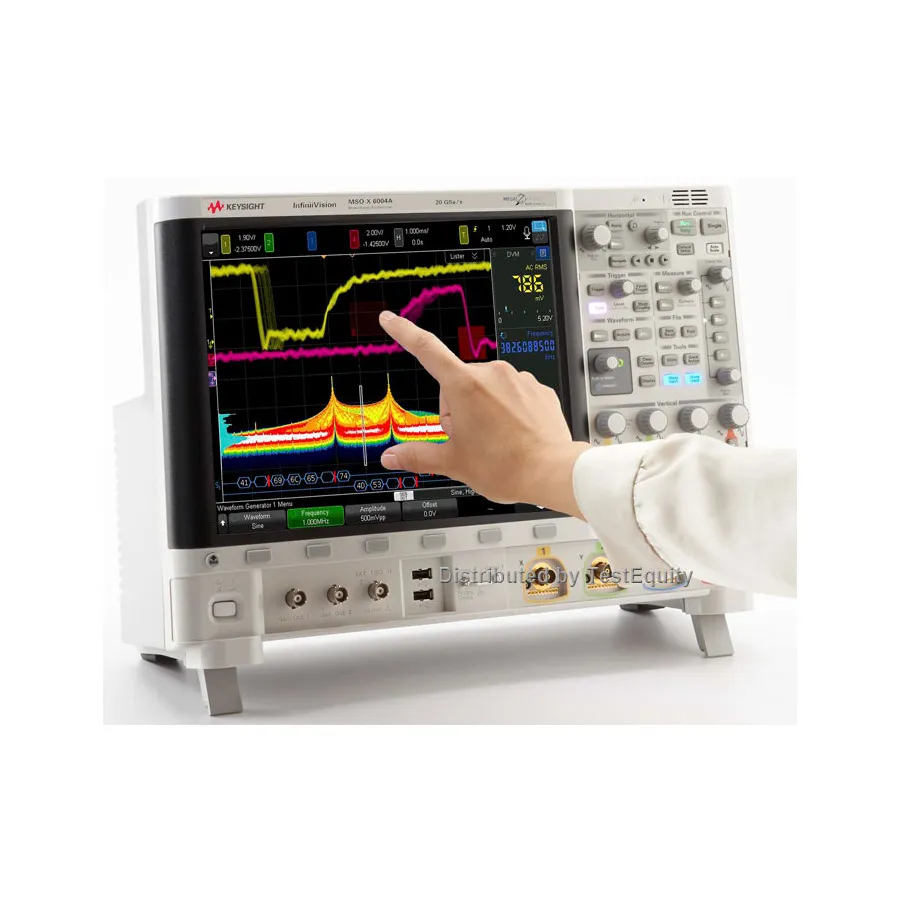

Keysight DSOX6004A Digital Oscilloscope

Overview

The Keysight DSOX6004A is a 4-channel digital oscilloscope from the InfiniiVision 6000 X-Series, featuring 1 GHz bandwidth (upgradable to 6 GHz) and 20 GSa/s sampling rate. Designed for engineers requiring high bandwidth visualization power and integrated measurement capabilities in a portable package, it delivers the performance needed for measuring high-speed signals with rise times faster than 150 ps or data rates exceeding 2 Gbps NRZ.

Key Features

• 1 GHz bandwidth with upgrade options to 2.5, 4, or 6 GHz
• 20 GSa/s sampling rate with 4 Mpts maximum memory depth
• 4 analog channels with segmented memory
• 450,000 waveforms per second update rate for comprehensive signal visualization
• 12.1-inch capacitive multi-touch screen with InfiniiScan Zone touch trigger
• Six integrated instruments: oscilloscope, 16 digital channels, serial protocol decoder, function/arbitrary waveform generator, digital voltmeter, counter with totalizer (via options)
• Voice control in 14 languages
• Three-year warranty
• Optional mixed-signal oscilloscope capability with 16 digital channels

Applications

• High-frequency signal measurement and analysis
• Digital design and embedded systems testing
• Mixed-signal circuit debugging and verification
• Protocol analysis and timing measurements
• Power supply and component characterization

Included Accessories

• N2894A 700-MHz 10:1 passive probe (one per channel)
• Certificate of calibration (2-year interval)
• Power cord
• Front panel protective cover
• User documentation and programming manual on CD
