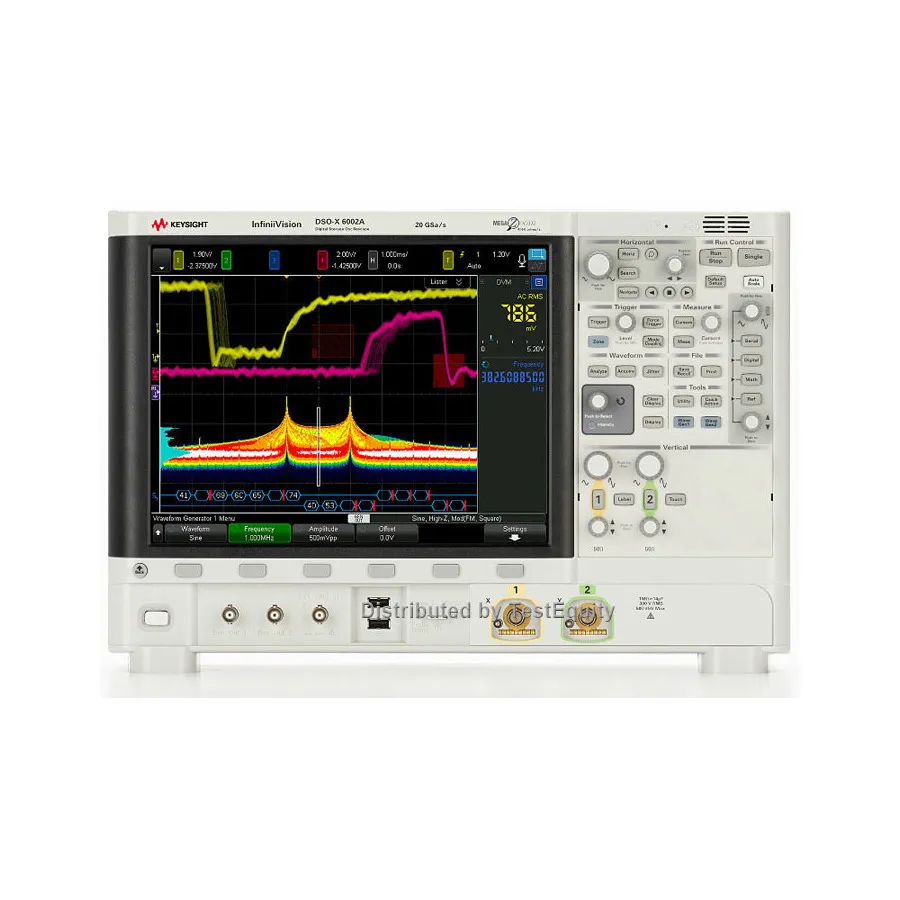

Keysight DSOX6002A 1GHz Digital Oscilloscope, 2 Channel

Overview

The Keysight DSOX6002A is a 2-channel digital oscilloscope in the InfiniiVision 6000 X-Series, offering 1-GHz bandwidth (upgradable to 2.5, 4, or 6 GHz) with a 20-GSa/s sampling rate and industry-leading 450,000 waveforms-per-second update rate. The 12.1-inch capacitive multi-touch display with InfiniiScan Zone touch trigger and voice control support provides an intuitive user experience. This compact instrument combines a full oscilloscope with integrated digital logic analyzer, function/arbitrary waveform generator, digital voltmeter, and counter in a portable package.

Key Features

• 1-GHz bandwidth, upgradable to 2.5, 4, or 6 GHz
• 20-GSa/s maximum sampling rate with 4-Mpts memory depth
• Industry-leading 450,000 waveforms/sec update rate for real-time signal visualization
• 12.1-inch capacitive multi-touch display with InfiniiScan Zone touch trigger
• Six integrated instruments: oscilloscope, 16-channel digital logic analyzer (optional), protocol trigger and decode (optional), dual-channel function/AWG (optional), digital voltmeter, 10-digit counter/totalizer
• Standard histogram and color grade display with enhanced color FFT
• Optional jitter and real-time eye diagram analysis
• Voice control in 14 languages
• Three-year warranty

Applications

• High-speed digital signal measurement and analysis
• Mixed-signal debugging with integrated digital channels
• Frequency domain analysis with FFT and jitter measurements
• Education and training in electronics and embedded systems
• Production testing and troubleshooting

Included Accessories

• N2894A 700-MHz 10:1 passive probe, one per channel
• Certificate of calibration with 2-year interval
• Power cord and front panel protective cover
• User's guide, service guide, and programmer's manual on CD
