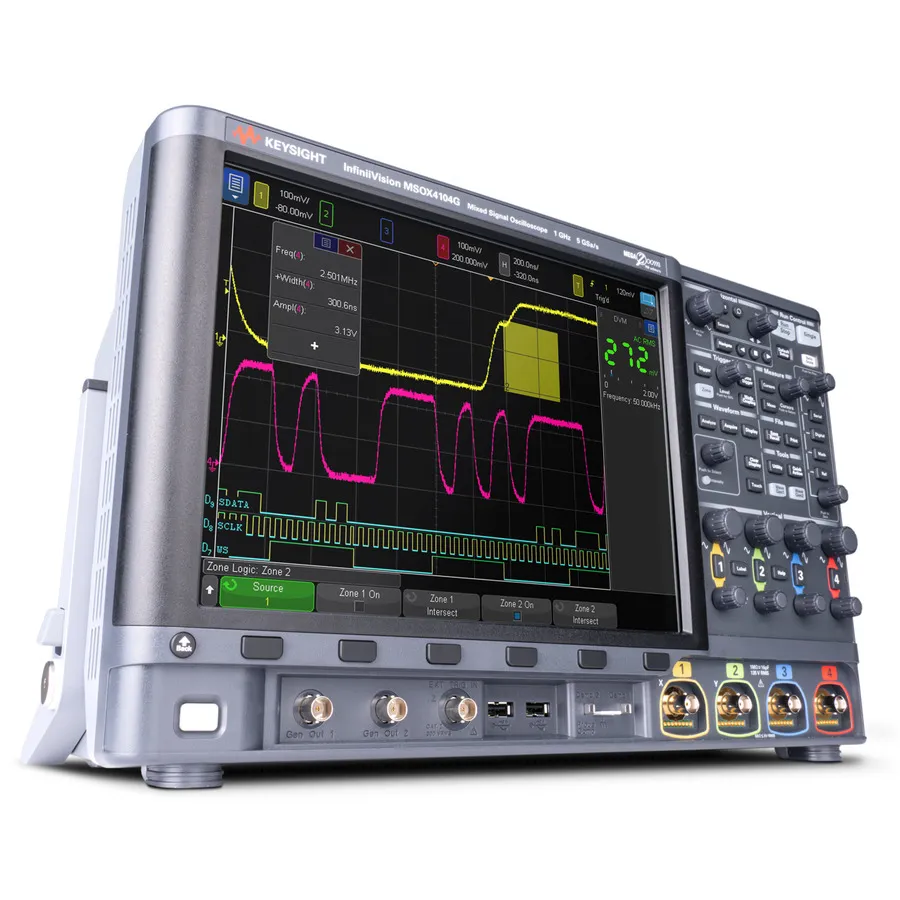

Keysight DSOX4052G 2-Channel 500MHz Digital Oscilloscope

Overview

The Keysight DSOX4052G is a 2-channel 500MHz oscilloscope from the InfiniiVision 4000G X-Series, designed for general debugging to industry-specific applications. It features a 12.1-inch capacitive touch display, advanced triggering technology, and integrated serial protocol analysis for comprehensive signal characterization and troubleshooting.

Key Features

• Bandwidth: 500 MHz with upgrade path to higher bandwidths
• 2 analog channels with option for 16 digital channels (MSO upgrade)
• Maximum sample rate: 5 GSa/s
• Maximum memory depth: 4 Mpts
• 12.1-inch capacitive touch display with intuitive interface
• 1,000,000 waveforms per second update rate
• InfiniiScan Zone touch trigger for rapid signal isolation
• Integrated 5-digit frequency counter (standard)
• Serial protocol analysis: I2C, SPI, RS232/422/485/UART, I2S, USB PD (standard); additional protocols available via optional licenses
• Advanced features: segmented memory, FFT, waveform math, mask testing, histograms
• Dual waveform generator (standard on G models)
• Frequency response analysis (Bode plots)
• 7 integrated instruments in 1 unit
• Standard connectivity: USB 2.0, LAN, video output (GPIB available as option)
• License-upgradeable for additional features and software

Applications

• General debugging and troubleshooting of electronic circuits
• Power analysis including automatic power supply rejection ratio (PSRR) measurements
• Control loop response measurements and frequency response analysis
• Automotive systems development and analysis
• Semiconductor development and characterization
• Serial communication protocol analysis and verification

Included Accessories

• One N2894A 700 MHz passive probe per channel (10:1 attenuation)
• Localized power cord
• Front panel cover
• Calibration documentation (downloadable soft copy)
