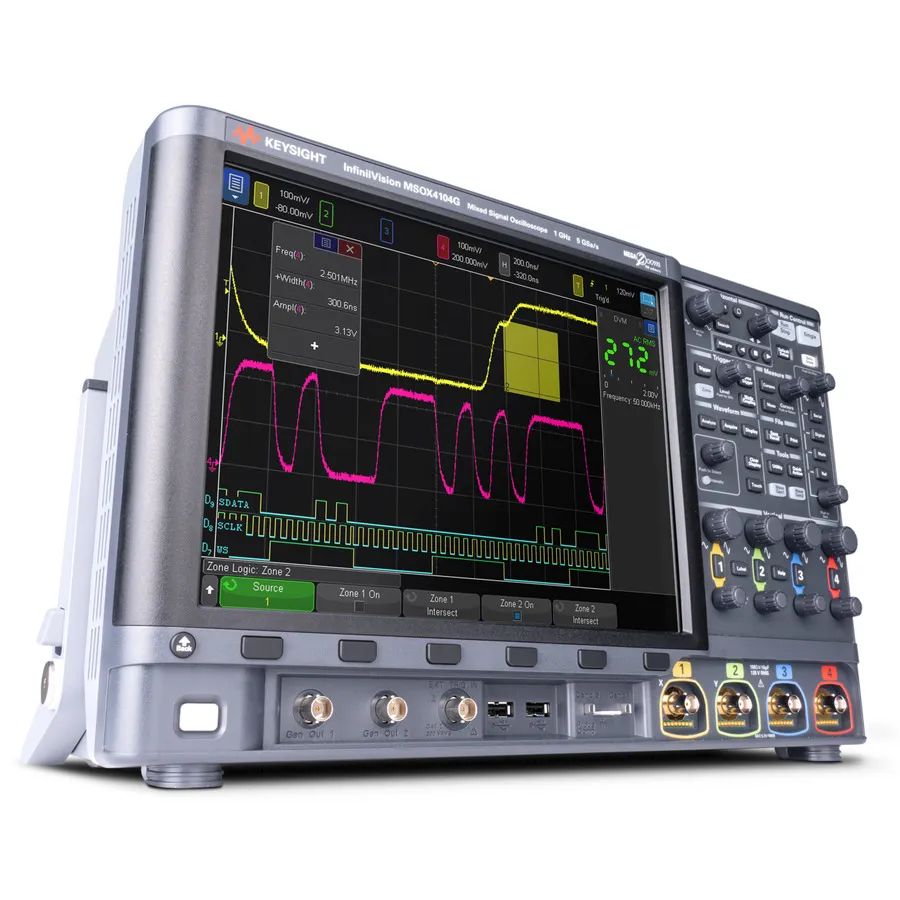

Keysight DSOX4024G Digital Oscilloscope

Overview

The Keysight DSOX4024G is a 4-channel digital oscilloscope offering 200 MHz bandwidth, 4 Mpts memory, and 5 GSa/s sample rate. It features a 12.1-inch capacitive touch display with 1 million waveforms per second update rate, providing powerful signal analysis capabilities for debugging and protocol analysis. The 4000G X-Series combines advanced performance with intuitive usability for both general debugging and industry-specific applications.

Key Features

• 4 analog channels with 200 MHz bandwidth
• 5 GSa/s maximum sample rate with 4 Mpts maximum memory depth
• 12-bit vertical resolution
• 12.1-inch capacitive touch display with intuitive interface
• 1 million waveforms per second update rate for rapid signal capture
• Zone trigger and segmented memory for efficient analysis
• Built-in dual arbitrary waveform generator (WaveGen)
• Standard serial protocol analysis: I2C, SPI, RS232/422/485, UART, I2S, USB PD
• Optional protocols: ARINC 429, CAN, CAN-FD, LIN, SENT, FlexRay, MIL-STD-1553, USB 2.0, CXPI, Manchester/NRZ
• 7 instruments integrated in 1
• Frequency response analysis (Bode plots), FFT, advanced math functions
• Mask limit testing and measurement histograms
• License upgradeable for additional capabilities

Applications

• General circuit debugging and signal analysis
• Serial protocol analysis and decoding
• Power analysis and power supply rejection ratio measurements
• Control loop response and frequency response analysis
• Automotive systems development and testing
• Semiconductor and embedded systems verification
• Industry-specific analysis with software add-ons

Included Accessories

• One N2894A 700 MHz passive probe per channel (10:1 attenuation)
• Localized power cord
• Front panel cover
• Downloadable calibration certificate and documentation
