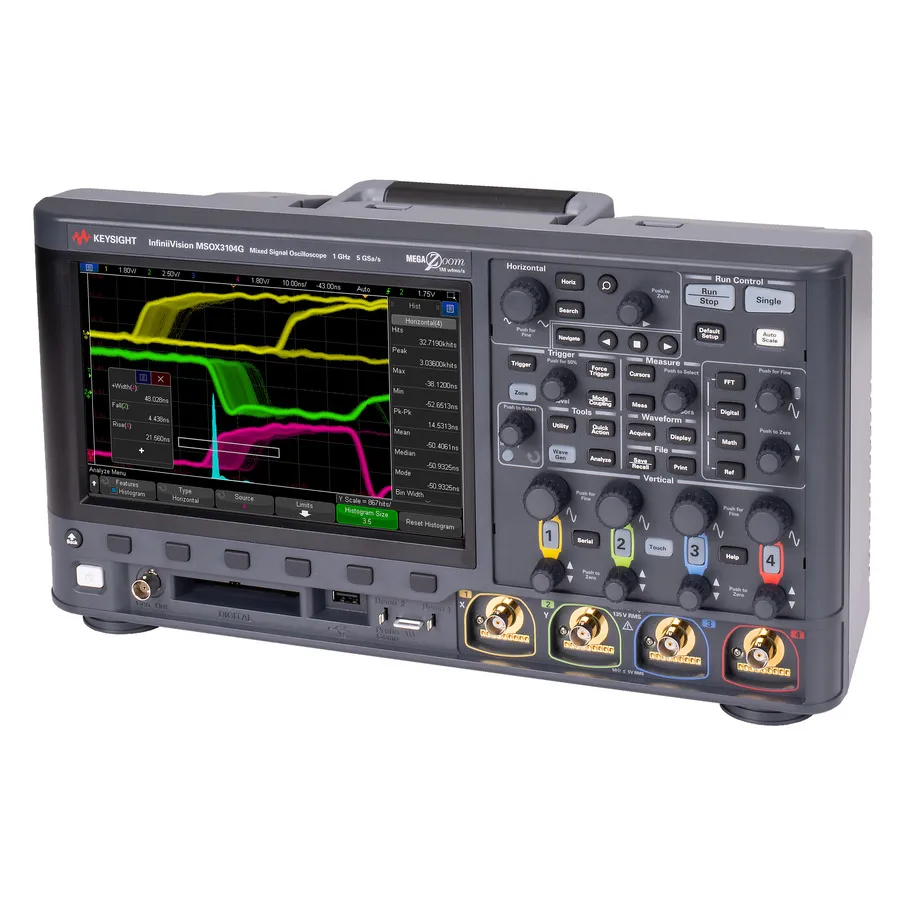

Keysight DSOX3104G Digital Oscilloscope

Overview

The Keysight InfiniiVision DSOX3104G is a 4-channel, 1 GHz digital oscilloscope from the 3000G X-Series, offering high-end technology in a compact form factor. With an intuitive capacitive touch interface, industry-leading 1 million waveforms per second update rate, and zone triggering capability, the DSOX3104G enables capture and isolation of elusive glitches and anomalies. The MegaZoom IV smart memory technology delivers comprehensive signal detail under any conditions.

Key Features

• 1 GHz Bandwidth
• 4 Channels
• Up to 5 GSa/s Maximum Sample Rate
• Up to 4 Mpts Memory Depth
• 1,000,000 Waveforms/s Update Rate
• 8.5-inch Capacitive Touch Display
• Zone Touch Trigger for instant signal isolation
• Built-in 20 MHz Function/Arbitrary Waveform Generator
• Hardware-based serial protocol decoding (I2C, SPI, UART, I2S, USB PD)
• Waveform and Measurement Histograms
• Mask Limit and Measurement Limit Testing
• 8-Digit Counter and Totalizer
• Frequency Response Analysis (Bode plots)
• Enhanced HDTV Video Analysis
• USB host, USB device, LAN, and VGA Connectivity
• Multiple interface options: touch GUI, front panel buttons, or Windows-like pull-down menus
• USB mouse and keyboard support
• Mobile device monitoring and control via BenchVue software

Standard Applications

• Serial bus protocol triggering and decoding
• Frequency response and Bode plot analysis
• Power supply characterization
• Aerospace/Defense applications (with optional MIL-STD 1553 and ARINC 429 decoding)
• Automotive testing (with optional serial bus decoding for powertrain and body control)
• USB 2.0 analysis (with optional extended USB capability)

Included Accessories

• Passive probes N2843A (500 MHz, 10:1 attenuation, 1 Megohm impedance, 11 pF capacitance) — 1 per channel
• Certificate of calibration
• Localized power cord
