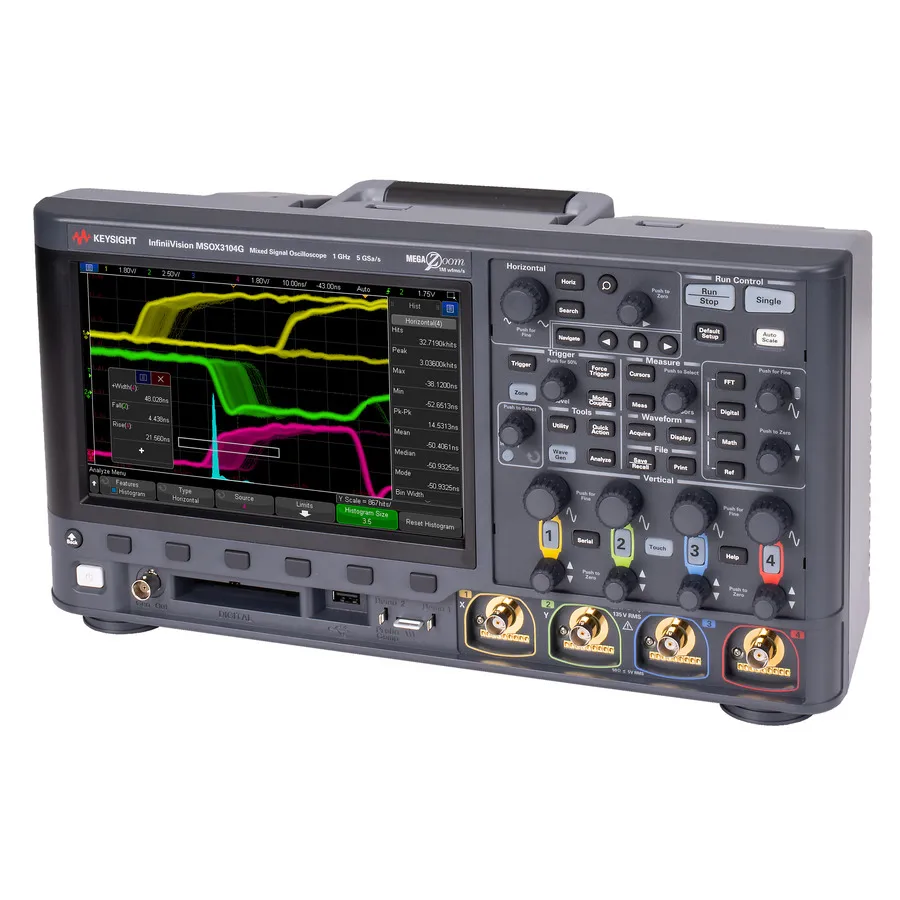

Keysight DSOX3102G Digital Oscilloscope

Overview

The Keysight DSOX3102G is a 1 GHz InfiniiVision 3000G X-Series digital oscilloscope that combines high-end measurement capabilities with an intuitive capacitive touch interface. The industry-leading waveform update rate, advanced zone triggering, and integrated multi-function capabilities enable rapid discovery and isolation of complex signal anomalies.

Key Features

• 1 GHz bandwidth with 2 independent channels
• 5 GS/s sampling rate with 4 M points memory depth
• 1,000,000 waveforms per second update rate powered by MegaZoom IV technology
• 8.5-inch capacitive touch display with three access methods: touch, front panel, and menu interface
• Zone Touch Trigger for precise signal event isolation
• Built-in 20 MHz function and arbitrary waveform generator
• Serial protocol triggering and decoding: I2C, SPI, UART, I2S, USB PD
• Waveform and measurement histograms
• Mask limit and measurement limit testing
• Frequency response analysis with Bode plots
• Integrated digital voltmeter and frequency counter
• USB host and device ports, LAN, and VGA connectivity

Applications

• High-bandwidth signal acquisition and analysis
• Digital and mixed-signal circuit design verification
• Serial protocol analysis and validation
• Power supply characterization and measurement
• Aerospace and defense applications
• Automotive electronics testing
• USB signal integrity analysis

Included Accessories

• Passive probes N2843A (500 MHz, 10:1 attenuation, 1 Megohm, 11 pF) — one per channel
• Certificate of calibration
• Localized power cord
