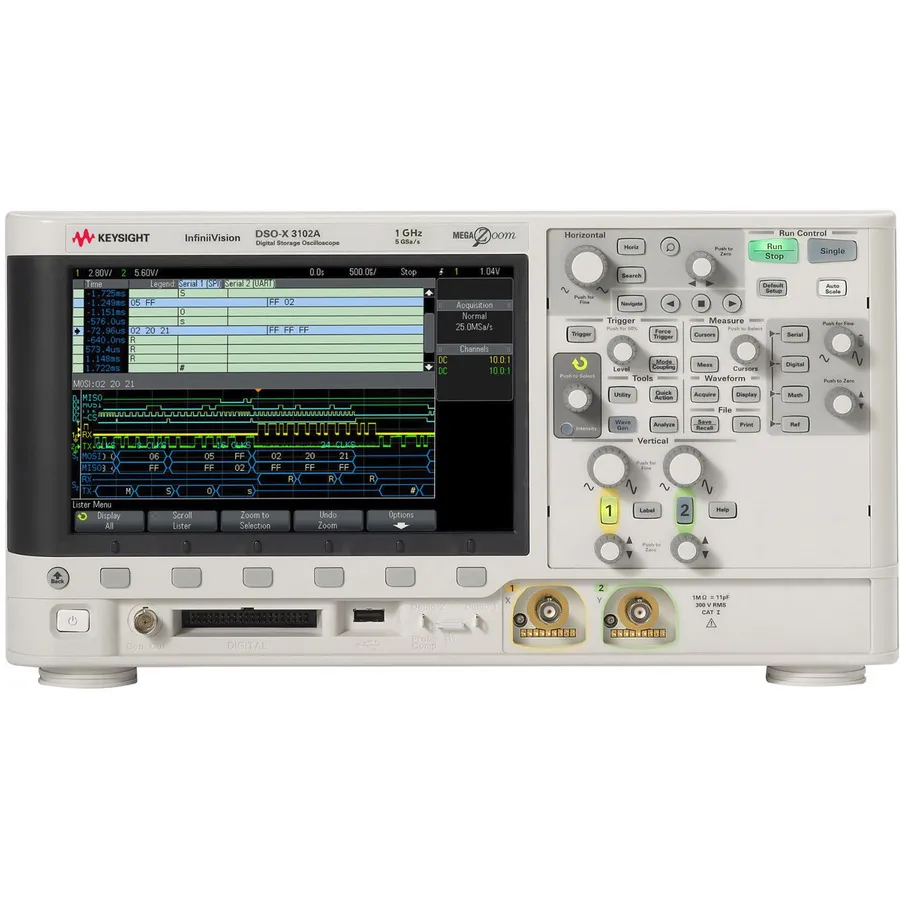

Keysight DSOX3102A Digital Oscilloscope
Request a quote
Keysight DSOX3102A is a 1 GHz 2-channel oscilloscope with 4 GS/s sampling rate, up to 4 M points memory, 1 million waveforms/s update rate, and integrated waveform generator.
Product details
| Model | DSOX3102A |
| Manufacturer | Keysight |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Keysight DSOX3102A is a 1 GHz InfiniiVision 3000 X-Series digital oscilloscope delivering five integrated instruments in one compact platform. The industry-leading 1 million waveforms per second update rate combined with MegaZoom IV smart memory technology provides uncompromised signal visibility for even the most challenging measurement tasks.
Key Features
- 1 GHz bandwidth with 2 independent channels
- 4 GS/s sample rate with standard 2 M points memory (optional 4 M points)
- 1,000,000 waveforms per second update rate
- 8.5-inch WVGA color display
- Fully upgradable to higher bandwidth and additional channels
- Built-in 20 MHz function and arbitrary waveform generator
- Serial protocol triggering and decoding: I2C, SPI, UART, I2S
- Waveform math and FFT analysis
- Five instruments in one: oscilloscope, digital channels, waveform generator, voltmeter, and protocol analyzer
- USB host and device ports for connectivity and data logging
- Optional LAN, VGA, and GPIB interfaces
Applications
- Digital circuit design and verification
- Embedded system debugging
- Serial communication protocol analysis
- Frequency domain analysis with FFT
- Educational laboratory work
- Field service and maintenance
Specifications
| Bandwidth | 1 GHz |
| Analog Channels | 2 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 5 GS/s |
| Memory | 2 Mpts |
| Type | DSO |
| Vertical Resolution | 8 bit |
| Display Type | 8.5 Capacitive Touch |
| Series | 3000 X-Series |
