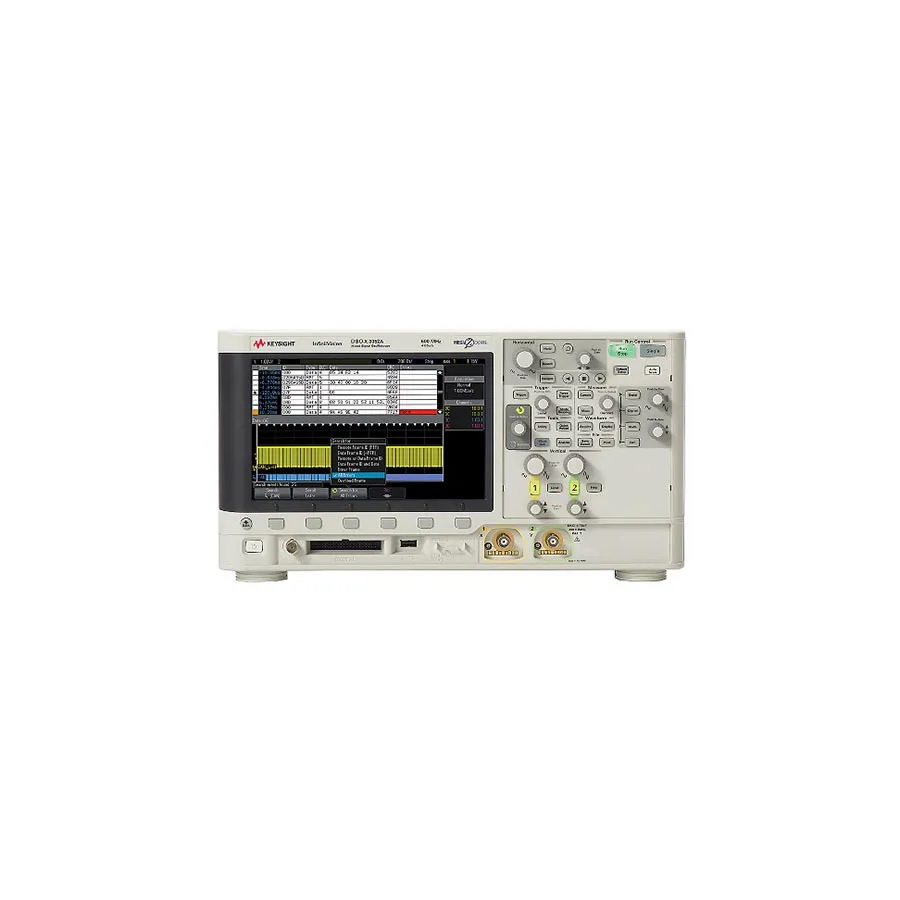

Keysight DSOX3052A Digital Oscilloscope
Request a quote
Keysight DSOX3052A offers 500 MHz bandwidth, 2 channels, 4 GSa/s sampling, 1M waveforms/s update rate, and integrated function generator with protocol analysis.
Product details
| Model | DSOX3052A |
| Manufacturer | Keysight |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Keysight DSOX3052A is a 2-channel, 500 MHz digital oscilloscope featuring the industry-leading 1 million waveforms per second update rate. Part of the InfiniiVision 3000 X-Series, it integrates five instruments in one platform: oscilloscope, digital channels, function generator, digital voltmeter, and protocol analyzer. The instrument provides maximum investment protection with full bandwidth upgradeability to 1 GHz.
Key Features
- 500 MHz bandwidth
- 2 analog channels with 4 GSa/s sampling rate
- 1,000,000 waveforms per second update rate
- 2 Mpts standard memory (up to 4 Mpts optional)
- 5-instruments-in-1 integration (oscilloscope, digital channels, 20 MHz WaveGen, DVM, protocol analyzer)
- Serial protocol triggering and analysis options
- Waveform math and FFT capabilities
- 8.5-inch WVGA color display
- USB host and device connectivity; optional LAN, VGA, and GPIB
- MegaZoom IV smart memory technology
- Fully upgradable architecture including bandwidth
Applications
- General-purpose signal measurement and troubleshooting
- Serial bus analysis and protocol debugging
- Waveform generation and arbitrary function synthesis
- Embedded systems development and testing
Specifications
| Bandwidth | 500 MHz |
| Analog Channels | 2 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 4 GS/s |
| Memory | 2 Mpts |
| Type | DSO |
| Vertical Resolution | 8 bit |
| Display Type | 8.5 Capacitive Touch |
| Series | 3000 X-Series |
