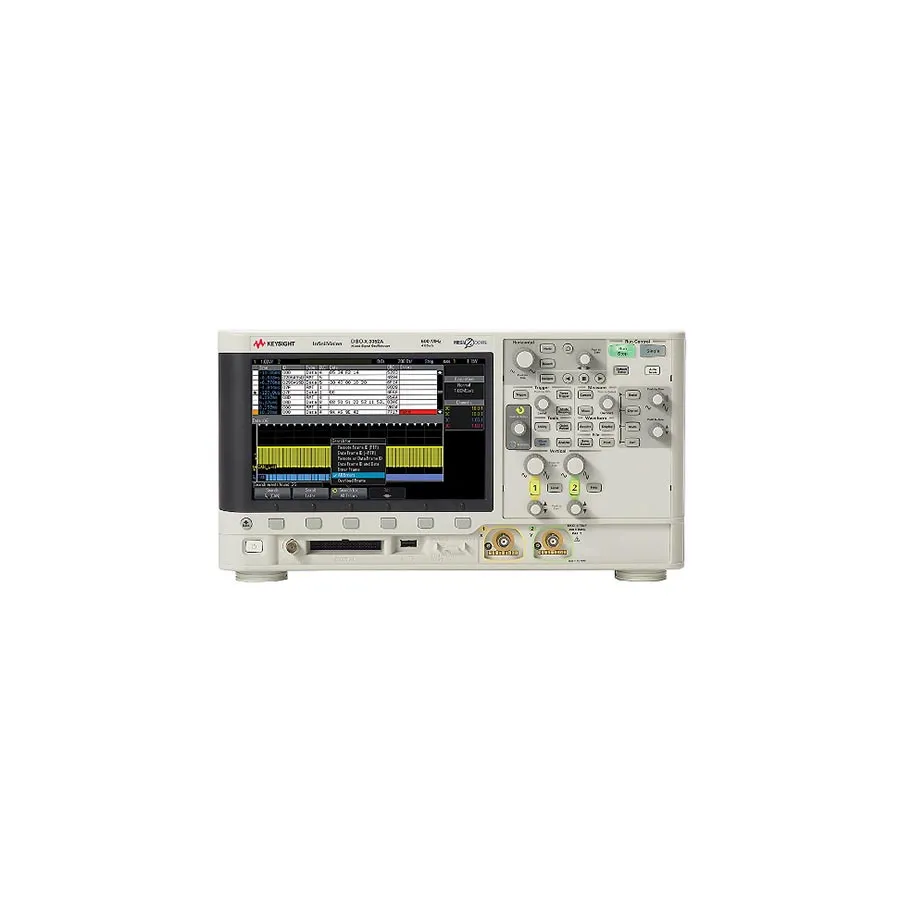

Keysight DSOX3012A Digital Oscilloscope
Request a quote
Keysight DSOX3012A is a 2-channel 100 MHz oscilloscope with 4 GS/s sampling rate, 1 million waveforms per second update rate, and integrated function generator.
Product details
| Model | DSOX3012A |
| Manufacturer | Keysight |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Keysight DSOX3012A is a 2-channel 100 MHz oscilloscope from the InfiniiVision 3000 X-Series family. It combines essential measurement capabilities with advanced features typically found in higher-end instruments, delivering maximum value and investment protection through fully upgradeable architecture.
Key Features
- 100 MHz bandwidth with 4 GS/s sampling rate
- 2 channels with 2 Mpts standard memory (4 Mpts optional)
- 1,000,000 waveforms per second update rate for capturing elusive glitches
- Built-in WaveGen 20 MHz arbitrary/function generator with modulation
- 8.5-inch WVGA color display with intuitive controls
- Waveform math and FFT analysis
- Serial protocol triggering and analysis options
- USB host and device ports, optional LAN and VGA interfaces, optional GPIB
- Fully upgradeable to higher bandwidth (up to 1 GHz)
Applications
- Electronics design and circuit debugging
- Signal analysis and measurement
- Serial protocol analysis and debugging
- Educational and training applications
Specifications
| Bandwidth | 100 MHz |
| Analog Channels | 2 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 4 GS/s |
| Memory | 2 Mpts |
| Type | DSO |
| Vertical Resolution | 8 bit |
| Display Type | 8.5 Capacitive Touch |
| Series | 3000 X-Series |
