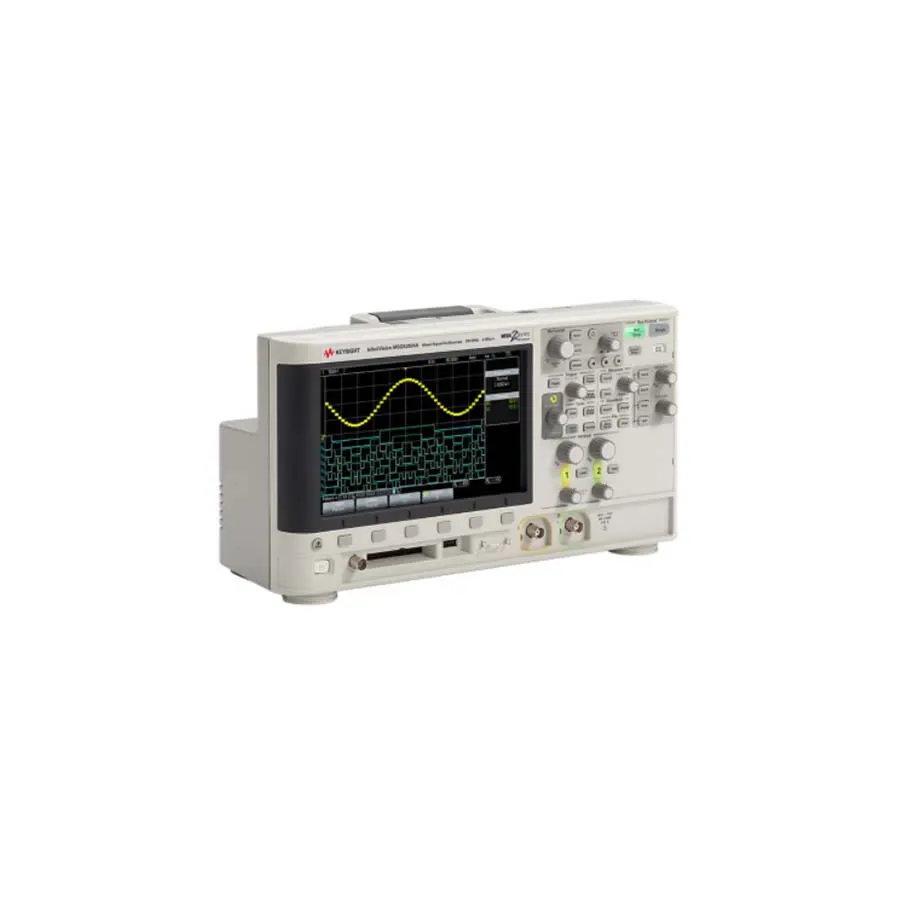

Keysight DSOX2012A Digital Oscilloscope

Overview

The Keysight InfiniiVision DSOX2012A is a 100 MHz, 2-channel digital oscilloscope designed for engineers and technicians who need reliable signal analysis and circuit debugging. It features a large 8.5-inch color display, fast waveform capture at 200,000 updates per second, optional integrated instruments, and full upgradeability to meet evolving test requirements.

Key Features

• 100 MHz bandwidth with 2 analog input channels
• 1 Mpts memory per channel for extended signal capture
• 8.5" WVGA color display with twice the viewing area of competing scopes
• 200,000 waveforms per second update rate for responsive signal visualization
• 1 GSa/s per channel, 2 GSa/s in 1-channel mode for high-speed sampling
• Integrated waveform math, FFT analysis, and MegaZoom IV technology
• Optional 20 MHz WaveGen function generator for signal generation
• Optional hardware serial protocol triggering and decoding
• Upgradeable to MSO capability with optional digital channel module
• USB, optional LAN, VGA, and GPIB connectivity
• Five-year warranty and BenchVue software for test automation

Applications

• Circuit design verification and signal integrity analysis
• Troubleshooting and debugging analog circuits
• Educational training in electronic measurement techniques
• General-purpose oscilloscope applications and signal visualization
