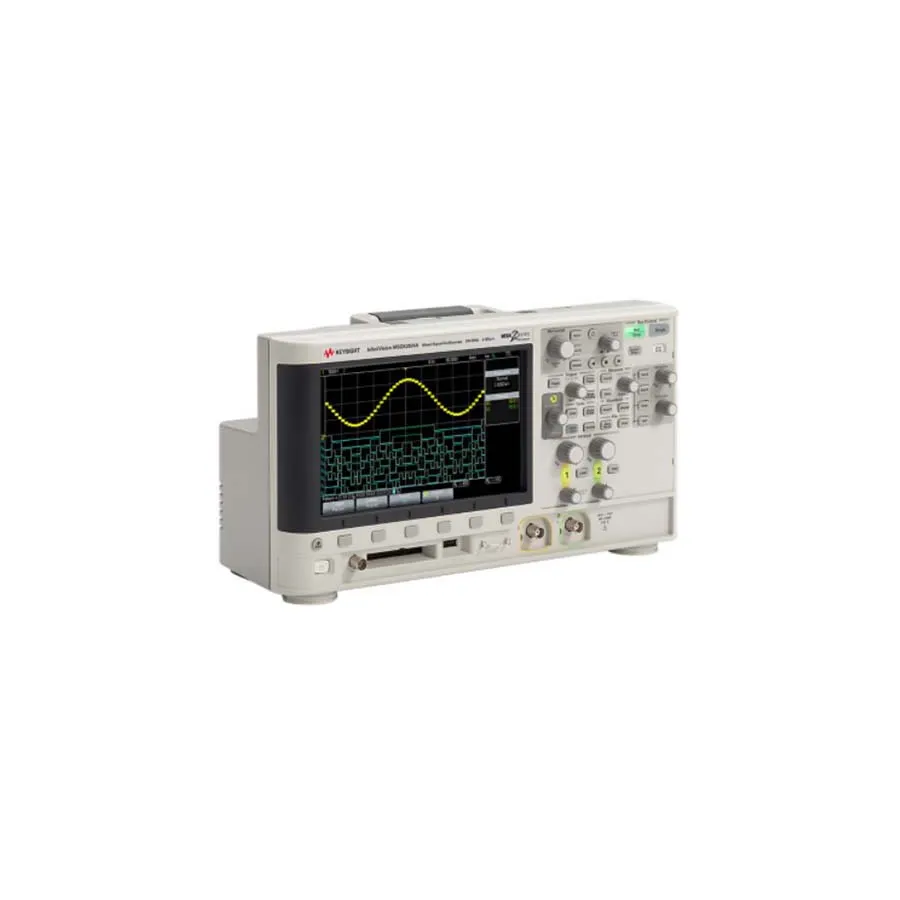

Keysight DSOX2002A Digital Oscilloscope
Request a quote
Keysight DSOX2002A — 2-channel, 70 MHz digital oscilloscope with 2 GS/s sample rate, 1 Mpts memory, and optional MSO upgrade capability.
Product details
| Model | DSOX2002A |
| Manufacturer | Keysight |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Keysight DSOX2002A is a 2-channel digital oscilloscope that combines professional measurement capabilities with ease of use and affordability. With 70 MHz bandwidth, 1 GS/s sampling per channel (2 GS/s in half-channel mode), and 1 Mpts memory, the DSOX2002A delivers solid performance for general-purpose troubleshooting and signal analysis. The intuitive InfiniiVision user interface and built-in training signals help engineers quickly become productive, while the fully upgradable architecture allows bandwidth and feature expansion as needs evolve.
Key Features
- 2 channels with 70 MHz bandwidth
- 1 GS/s per channel, 2 GS/s half-channel sampling rate with 1 Mpts memory
- 200,000 waveforms/second update rate with deep memory enabled
- Waveform math and FFT capability for advanced signal analysis
- Optional 20 MHz WaveGen function generator
- Optional MSO upgrade for mixed-signal analysis with time-aligned digital viewing
- 8.5-inch WVGA color display for clear signal visualization
- USB host and device ports, optional LAN and GPIB connectivity
- Fully upgradable bandwidth and features
- 5-year warranty
Applications
- Embedded systems development and debugging
- Electronics troubleshooting and repair
- Signal integrity analysis
- Protocol analysis with optional hardware-accelerated serial decode
Specifications
| Bandwidth | 70 MHz |
| Analog Channels | 2 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 2 GS/s |
| Memory | 1 Mpts |
| Type | DSO |
| Vertical Resolution | 8 bit |
| Display Type | 8.5 WVGA Color Touch |
| Series | 2000 X-Series |
