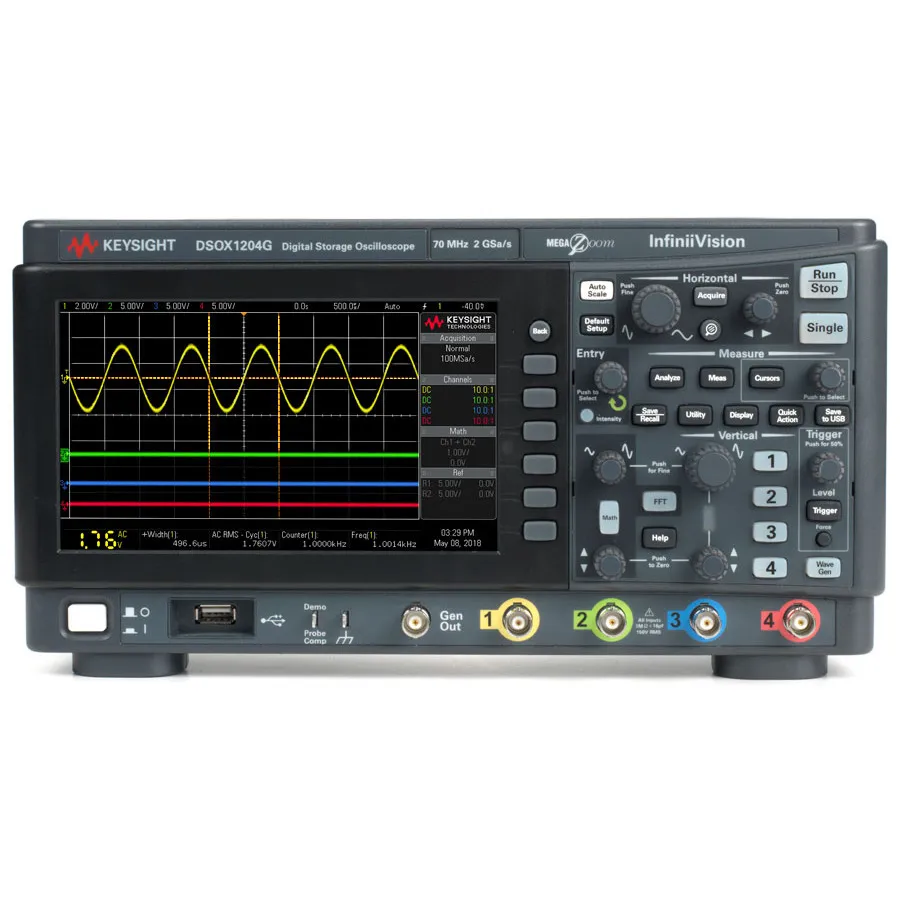

Keysight DSOX1204G Digital Oscilloscope

Overview

The Keysight InfiniiVision DSOX1204G is a 4-channel digital oscilloscope with integrated 20 MHz function generator, combining measurement and signal generation capabilities in a single platform. The added waveform generation capability enables circuit stimulus and testing, while maintaining full oscilloscope, voltmeter, frequency counter, and protocol analyzer functionality for versatile electronics applications.

Key Features

• 4-channel oscilloscope with 70 MHz bandwidth (upgradable to 100 MHz or 200 MHz)
• Integrated 20 MHz function generator with Bode plot testing capability
• 2 GS/s sample rate with 2 Mpts maximum memory depth
• 200,000 waveforms/sec update rate with 4th generation MegaZoom technology
• 7-inch TFT LCD WVGA color display
• 6-in-1 instrument integration combining oscilloscope, generator, voltmeter, frequency counter, and more
• Hardware-based serial protocol decode and triggering for I²C, SPI, UART/RS-232, CAN, and LIN
• Integrated 3-digit digital voltmeter and 5-digit frequency counter
• Mask Limit testing for automated validation
• USB 2.0 (host and device) and LAN connectivity, BenchVue software compatible
• Includes four N2140A 1:1/10:1 switchable 200 MHz probes, secure erase, calibration certificate, and power cord
• Three-year warranty

Applications

• Circuit design and debugging with integrated signal generation
• Serial communication protocol analysis and verification
• Component testing and characterization
• Frequency response and filter testing via Bode plots
• Educational and training use
