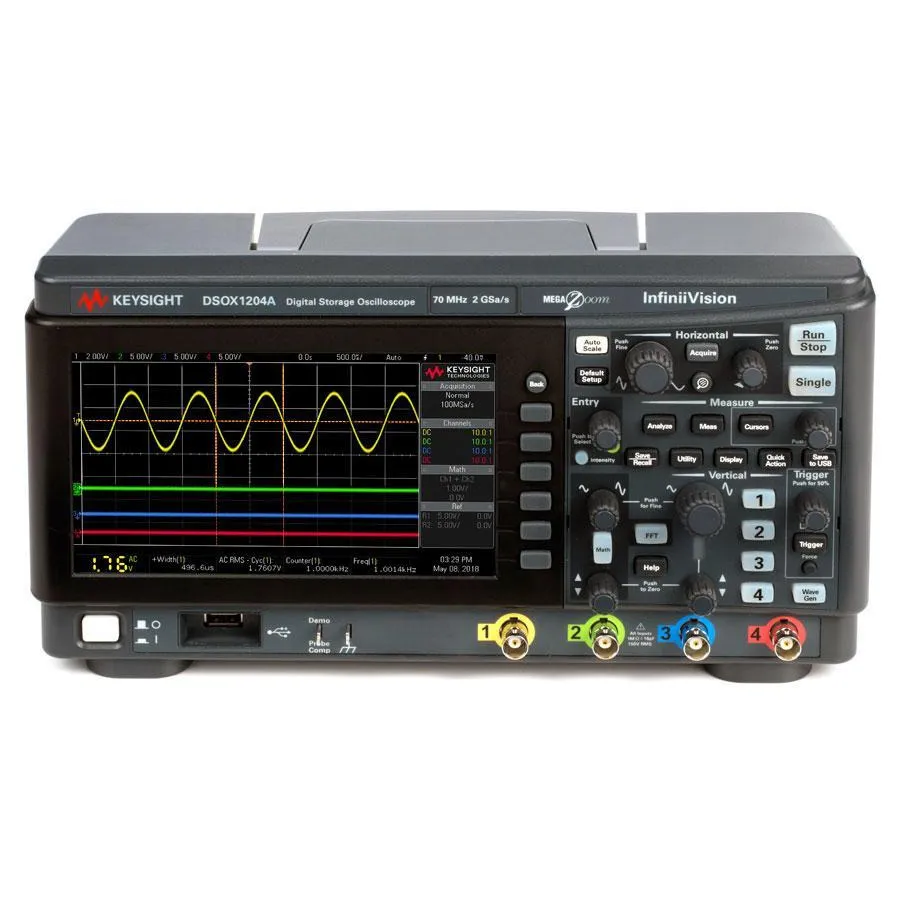

Keysight DSOX1204A/DSOX1200A-100 Digital Oscilloscope
Request a quote
Keysight DSOX1204A/DSOX1200A-100 — 4-channel digital oscilloscope with 100 MHz bandwidth, 2 GS/s sampling, and integrated 6-in-1 instrument functionality.
Product details
| Model | DSOX1204A/DSOX1200A-100 |
| Manufacturer | Keysight |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Keysight InfiniiVision DSOX1204A with 100 MHz bandwidth upgrade is a 4-channel digital oscilloscope delivering professional-grade measurement capabilities for demanding applications. The instrument combines oscilloscope, digital voltmeter, frequency counter, and protocol analyzer into one compact platform, supporting complex electronics debugging and protocol analysis tasks.
Key Features
- 4-channel oscilloscope with 100 MHz bandwidth (upgradable to 200 MHz)
- 2 GS/s sample rate with 2 Mpts maximum memory depth
- 200,000 waveforms/sec update rate with 4th generation MegaZoom technology
- 7-inch TFT LCD WVGA color display
- 6-in-1 instrument integration for comprehensive testing capabilities
- Hardware-based serial protocol decode and triggering for I²C, SPI, UART/RS-232, CAN, and LIN
- Integrated 3-digit digital voltmeter and 5-digit frequency counter
- Mask Limit testing for automated pass/fail validation
- USB 2.0 (host and device) and LAN connectivity, BenchVue software compatible
- Three-year warranty
Applications
- Mid to high-frequency signal analysis
- Serial communication protocol analysis and verification
- Complex circuit debugging and characterization
- Educational and advanced training use
- Manufacturing test and quality assurance
Specifications
| Bandwidth | 100 MHz |
| Analog Channels | 4 |
| Digital Channels | None |
| Sampling Rate | 2 GS/s |
| Memory | 2 Mpts |
| Type | DSO |
| Vertical Resolution | 8 bit |
| Display Type | 7 TFT LCD WVGA Color |
| Series | 1000 X-Series |
