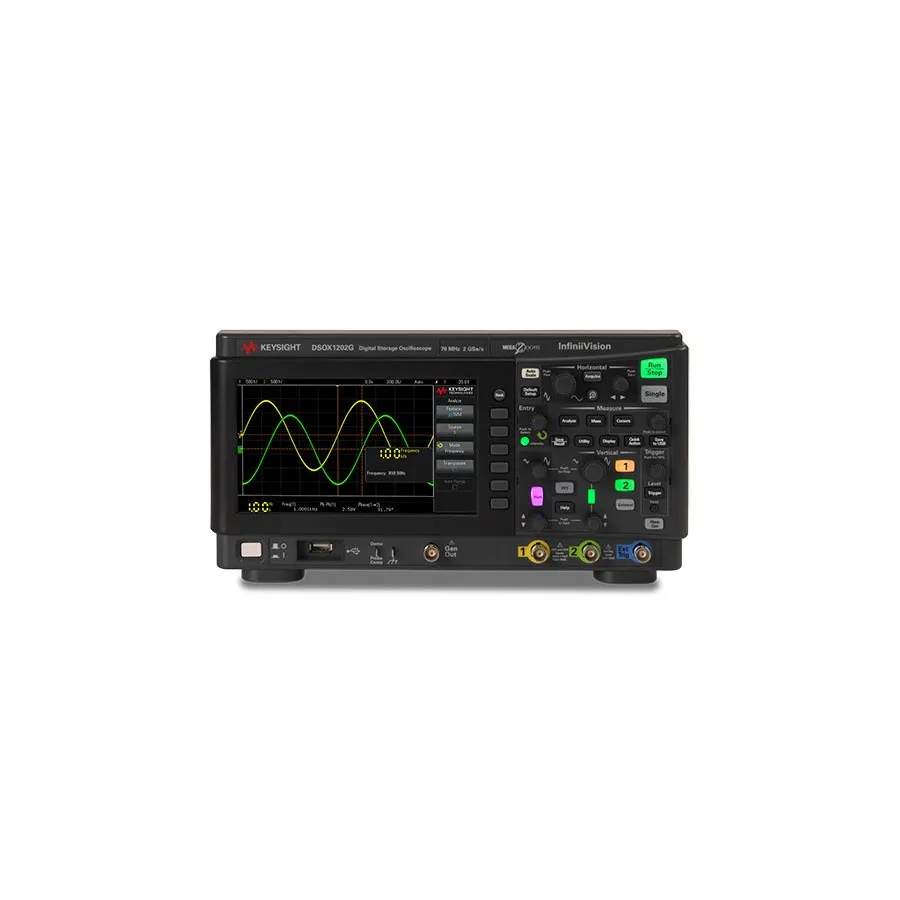

Keysight DSOX1202G/DSOX1202A-100 Digital Oscilloscope

Overview

The Keysight DSOX1202G/DSOX1202A-100 is a 2-channel digital oscilloscope with 100 MHz bandwidth, delivering professional-grade measurements for design and educational environments. The InfiniiVision 1000 X-Series design integrates a 20 MHz function generator with modulation capabilities and frequency response analysis capability. With 2 GSa/s sample rate and 2 Mpts memory, it provides comprehensive signal characterization in a compact form factor.

Key Features

• 2 channels plus external digital channel
• 100 MHz bandwidth (upgradable to 200 MHz) with 2 GSa/s sample rate
• 2 Mpts memory depth with segmented memory
• Built-in 20 MHz function generator with AM, FM, and FSK modulation
• Frequency response analyzer for Bode gain and phase measurements
• 7-inch WVGA TFT LCD display
• 200,000 waveforms/second update rate with MegaZoom IV technology
• Hardware-based serial protocol analysis (I²C, SPI, CAN, LIN, RS-232/422/485/UART)
• Mask limit testing at 200,000 tests/second
• Integrated 3-digit digital voltmeter and 5-digit frequency counter
• Waveform math functions (Add, Subtract, Multiply, Divide, FFT, Low Pass Filter)
• USB 2.0 (host and device), LAN, and BenchVue software
• 3-year warranty (upgradable to 5 years)

Applications

• Design lab prototyping and circuit debugging
• Educational courses in circuits and signal analysis
• Amplifier and network characterization
• Serial communication protocol verification
• General-purpose electronics troubleshooting and measurement

Included Accessories

• Two N2140A passive probes
• Power cord and secure erase utility
• BenchVue software with Oscilloscope app
• Certificate of calibration
