Keysight DSOX1202G Digital Oscilloscope

Overview

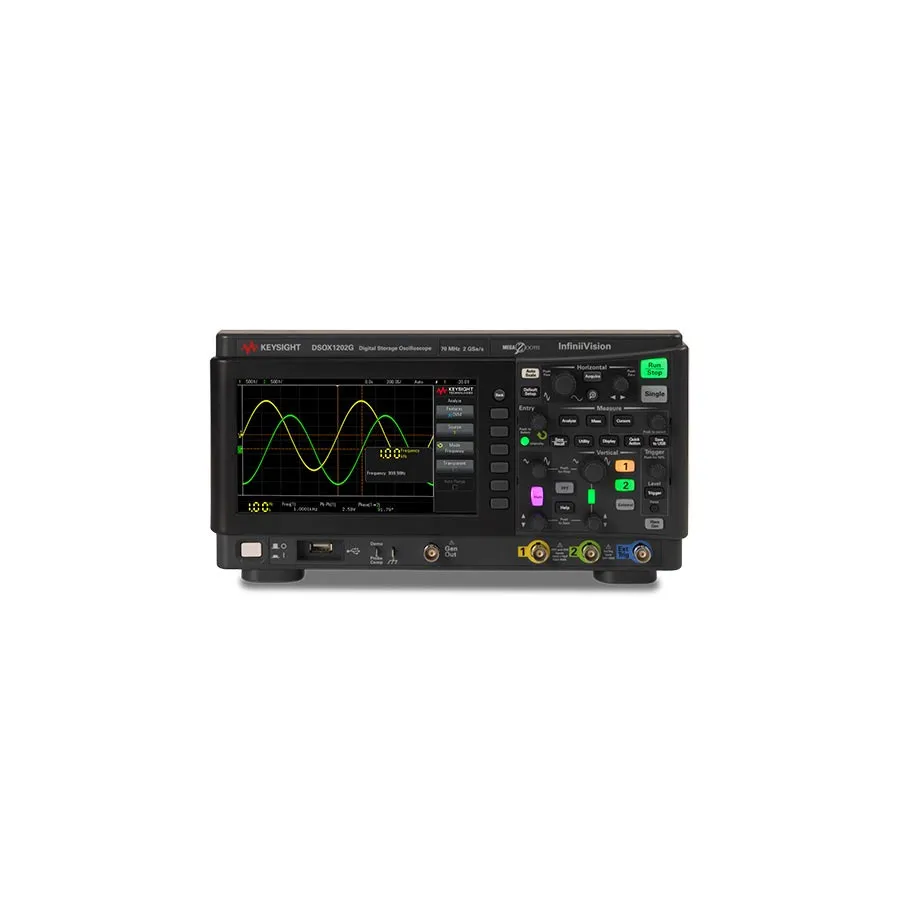

The Keysight DSOX1202G is a 2-channel digital oscilloscope in the InfiniiVision 1000 X-Series designed for labs and design environments where bench space and budget are limited. It provides 70 MHz bandwidth (upgradable to 100 or 200 MHz), 2 GSa/s sampling, and integrates a 20 MHz function generator with modulation capabilities. The MegaZoom IV technology enables 200,000 waveforms/second update rate for comprehensive signal analysis.

Key Features

• 2 channels plus external digital channel
• 70 MHz bandwidth (upgradable to 100 MHz or 200 MHz) with 2 GSa/s sample rate
• 2 Mpts memory depth with segmented memory
• Built-in 20 MHz function generator with AM, FM, and FSK modulation
• Frequency response analyzer with Bode gain and phase plots
• 7-inch WVGA TFT LCD display
• Hardware-based serial protocol analysis (I²C, SPI, CAN, LIN, RS-232/422/485/UART)
• Mask limit testing at 200,000 tests/second
• Integrated 3-digit digital voltmeter and 5-digit frequency counter
• Waveform math functions (Add, Subtract, Multiply, Divide, FFT, Low Pass Filter)
• USB 2.0 (host and device), LAN, and BenchVue software
• 3-year warranty (upgradable to 5 years)

Applications

• Educational laboratories and engineering courses
• Design lab prototyping with stimulus generation
• Passive network and amplifier characterization via Bode plots
• Serial protocol debugging and analysis
• Space-constrained benches requiring multi-function integration

Included Accessories

• Two N2140A passive probes
• Power cord and secure erase utility
• BenchVue software with Oscilloscope app
• Certificate of calibration
