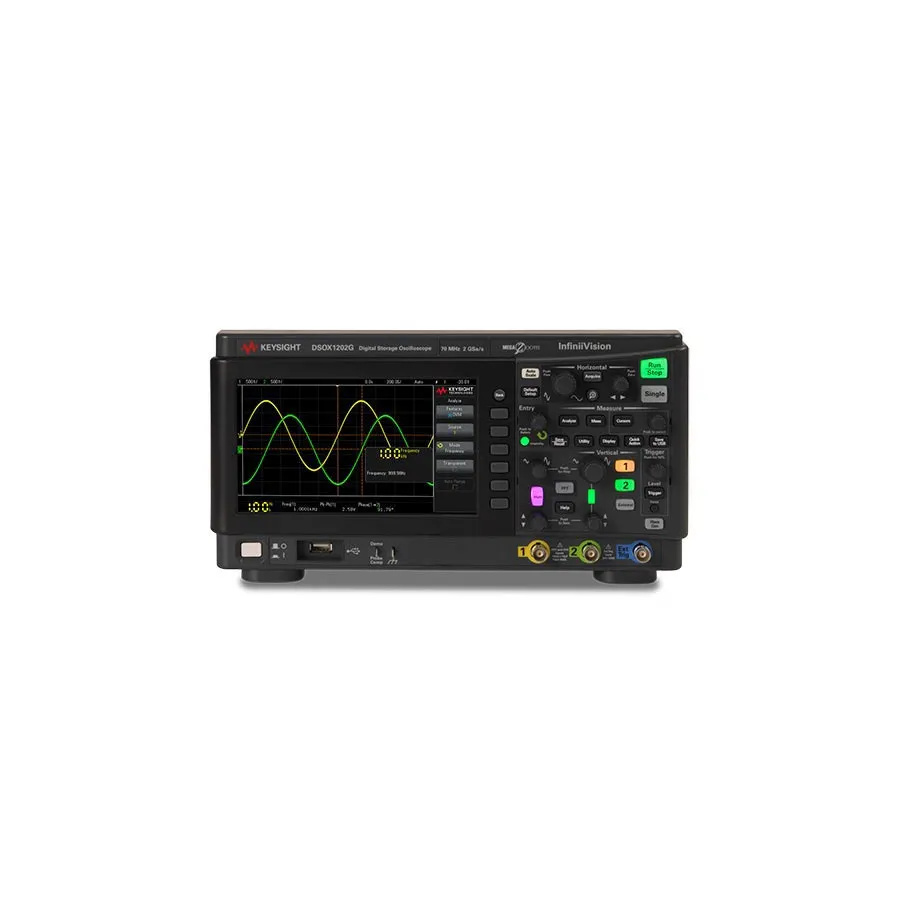

Keysight DSOX1202A/200 Digital Oscilloscope

Overview

The Keysight DSOX1202A/200 is a 2-channel digital oscilloscope offering professional measurement capabilities at an accessible price point. Part of the InfiniiVision 1000 X-Series, it features 200 MHz bandwidth, 2 GSa/s sample rate, and 2 Mpts memory depth. The MegaZoom IV technology provides 200,000 waveforms/second update rate for fast signal capture and analysis.

Key Features

• 2 channels plus external digital channel
• 200 MHz bandwidth with 2 GSa/s maximum sample rate
• 2 Mpts memory depth with segmented memory capability
• 7-inch WVGA TFT LCD display
• Hardware-based serial protocol analysis (I²C, SPI, CAN, LIN, RS-232/422/485/UART)
• Mask limit testing at 200,000 tests/second
• Integrated 3-digit digital voltmeter and 5-digit frequency counter
• Waveform math functions (Add, Subtract, Multiply, Divide, FFT, Low Pass Filter)
• USB 2.0 (host and device), LAN, and BenchVue software included
• Built-in training signals and comprehensive oscilloscope lab guide
• 3-year warranty (upgradable to 5 years)

Applications

• Education and student circuits training
• Design lab prototyping and signal analysis
• Serial protocol debugging and verification
• General-purpose electronic troubleshooting
• Automated test sequence development

Included Accessories

• Two N2140A passive probes
• Power cord and secure erase utility
• BenchVue software with Oscilloscope app
• Certificate of calibration
