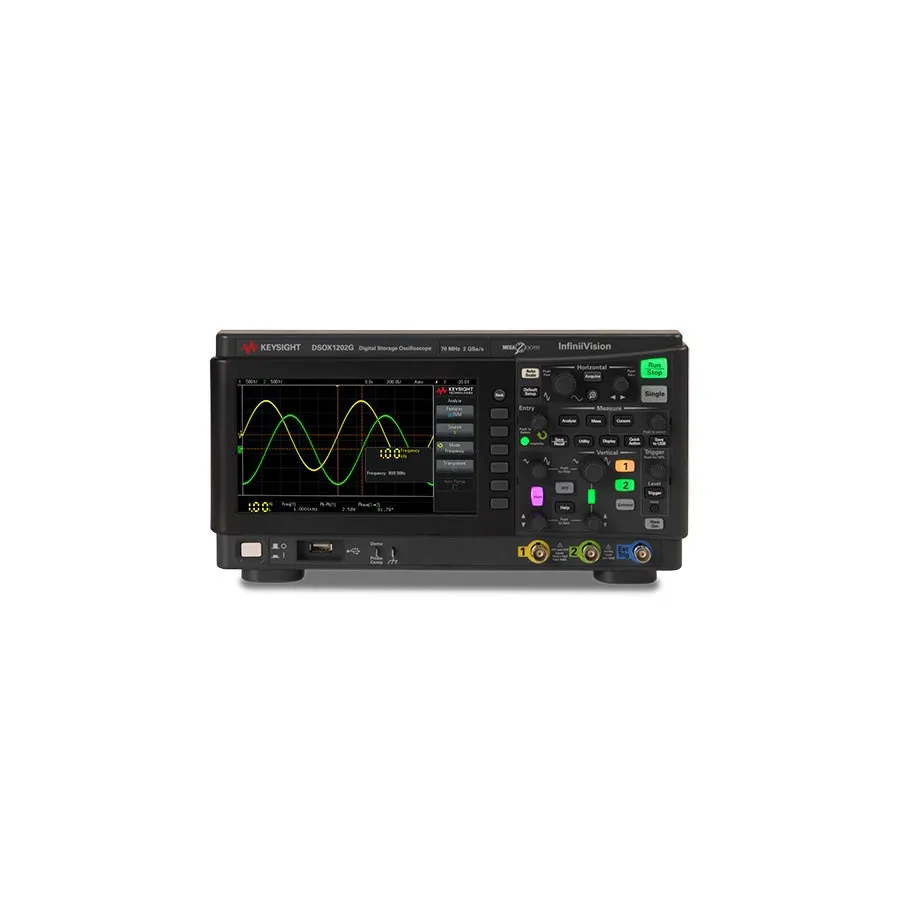

Keysight DSOX1202A Digital Oscilloscope

Overview

The Keysight DSOX1202A is a professional 2-channel digital oscilloscope from the InfiniiVision 1000 X-Series. It delivers high-performance measurements with a 70 MHz bandwidth (upgradable to 100 or 200 MHz), 2 GSa/s sample rate, and 2 Mpts memory. The oscilloscope combines measurement capabilities with 6-in-1 instrument integration, including digital voltmeter, frequency counter, and protocol analyzer functions.

Key Features

• 2-channel configuration
• 70 MHz bandwidth, upgradable to 100 MHz or 200 MHz
• 2 GSa/s sample rate with 200,000 waveforms/sec update rate (MegaZoom IV technology)
• 2 Mpts maximum memory depth with segmented memory capability
• 7-inch WVGA TFT LCD display
• Integrated digital voltmeter (3-digit) and frequency counter (5-digit)
• Serial protocol analysis: I²C, SPI, CAN, LIN, RS-232/422/485/UART
• Hardware-based protocol decode and triggering
• Waveform math functions: Add, subtract, multiply, divide, FFT (magnitude and phase), low pass filter
• Mask limit testing with 200,000 tests/sec capability
• Connectivity: USB 2.0 (host and device), LAN with BenchVue software
• 3-year warranty standard (upgradable to 5-year)

Applications

• Educational laboratories and student training
• Electronic design and development
• Serial communication debugging and analysis
• Analog and digital signal measurement

Included Accessories

• Two N2140A 200 MHz passive probes (10:1/1:1 switchable)
• Power cord
• Certificate of calibration
• 3-year warranty
• BenchVue software with oscilloscope app
