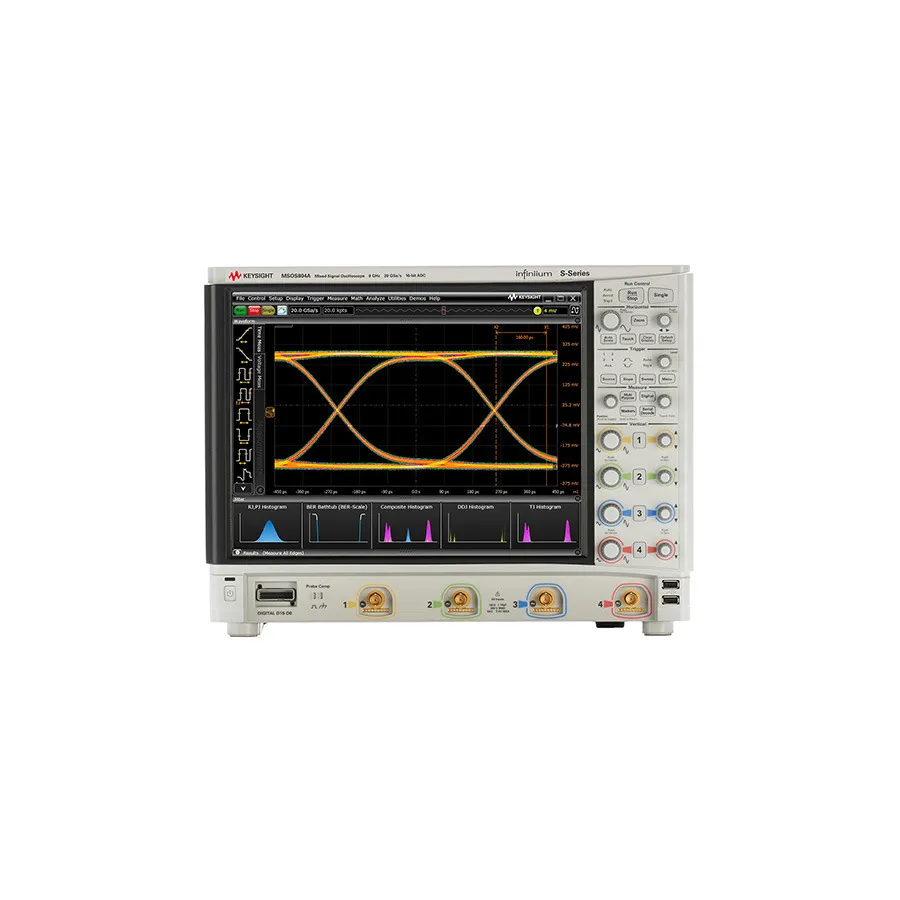

Keysight DSOS604A Digital Oscilloscope

Overview

The Keysight DSOS604A is a 6 GHz digital oscilloscope from the Infiniium S-Series, featuring 4 analog channels and signal integrity technology. The instrument is designed for applications requiring precise signal analysis, including design debugging and compliance verification.

With a 10-bit ADC, advanced front-end architecture, and the option for up to 16 bits of vertical resolution in high-resolution mode, the DSOS604A provides accurate signal representation. The 20 GS/s sample rate and 100 Mpts of memory enable capture and analysis of longer signal traces.

Key Features

• 6 GHz bandwidth, upgradable to 8 GHz
• 4 analog channels with option to upgrade to 16-channel MSO
• 20 GS/s maximum sample rate with 100 Mpts/channel standard memory
• 10-bit ADC with 8.1 bits average system ENOB at full bandwidth
• Up to 16 bits of vertical resolution with high-resolution mode
• 15" capacitive touch screen for multi-touch operation
• 256 GB removeable solid-state drive for reliability and fast boot
• Windows 10 OS with broad suite of software tools
• Compatible with wide range of Keysight probes and applications

Applications

• High-speed design debugging and verification
• Compliance testing and protocol analysis
• Signal integrity measurements and troubleshooting
• General-purpose oscillography and design validation

Included Accessories

• Four N2873A 500-MHz passive probes
• Probe accessory pouch
• Localized power cord
• Front panel cover
• 8 GHz BNC calibration cable
• Keyboard and mouse
