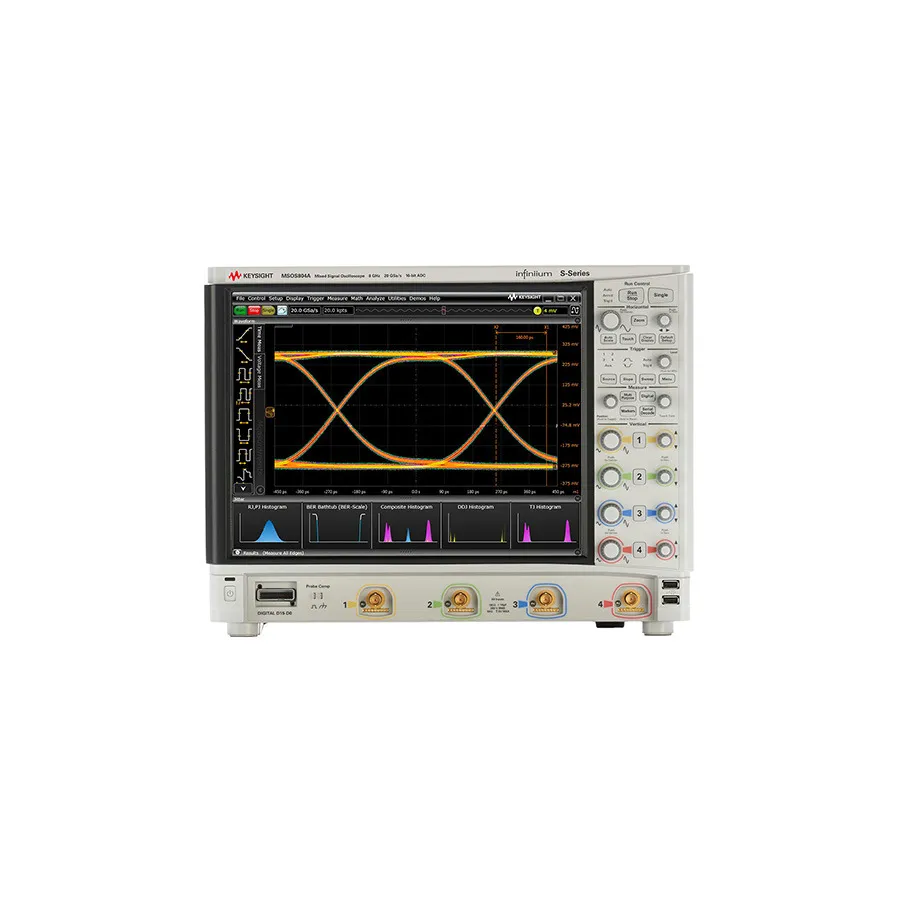

Keysight DSOS204A Digital Oscilloscope

Overview

The Keysight Infiniium DSOS204A is a 2 GHz S-Series digital oscilloscope engineered for superior measurements in demanding high-frequency applications. Featuring a 10-bit ADC with advanced system architecture, it achieves up to 16 bits of vertical resolution. With 4 analog channels, 100 Mpts per channel standard memory, and 20 GSa/s maximum sample rate, the DSOS204A offers exceptional signal visibility and low-noise performance for complex design verification and signal integrity analysis.

Key Features

• 2 GHz bandwidth, upgradable to 8 GHz
• 4 analog channels, upgradable to 16-channel MSO with N2901E option
• 100 Mpts per channel standard memory with 20 GSa/s max sample rate
• 10-bit ADC with advanced architecture for up to 16 bits vertical resolution
• Average system ENOB of 8.1 bits at full bandwidth
• 15" capacitive multi-touch display with solid-state drive
• Windows 10 OS with 256 GB removeable SSD
• Wide range of protocol, compliance, and analysis software

Applications

• High-frequency digital design debugging
• Advanced signal integrity analysis
• Protocol compliance and verification testing
• Wideband signal characterization
• Design development and validation

Included Accessories

• Four N2873A 500-MHz passive probes
• Probe accessory pouch
• Localized power cord
• Front panel cover
• 8 GHz BNC calibration cable
• Keyboard and mouse
• User and programmer guides on oscilloscope internal drive
