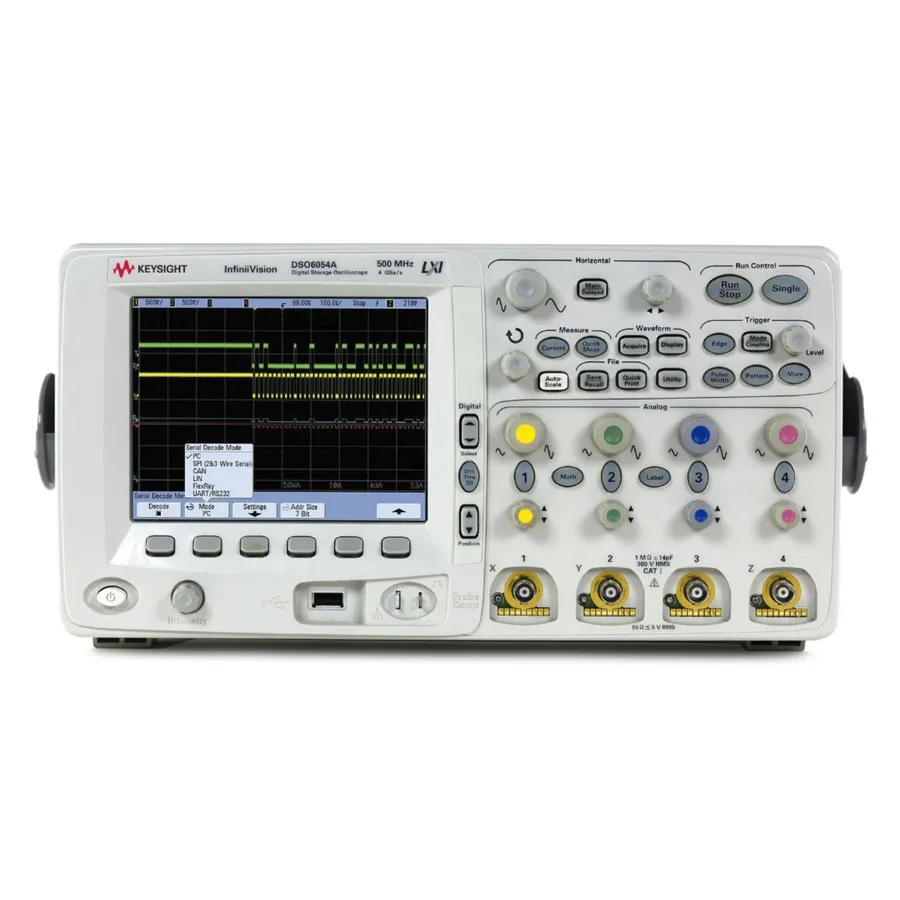

Keysight DSO6054A InfiniiVision Digital Oscilloscope

Overview

The Keysight DSO6054A is a 500 MHz, 4-channel digital storage oscilloscope from the InfiniiVision 6000 series. It features up to 4 GS/s sample rate, 8 Mpts of MegaZoom III deep memory, and a high-definition XGA color display with 256 intensity levels. With update rates reaching 100,000 waveforms per second, the DSO6054A reveals subtle signal details and captures infrequent events that other scopes miss. This scope is optimized for verifying and debugging embedded microcontroller designs, DSP systems, and mixed analog-digital circuitry.

Key Features

• 500 MHz bandwidth with 4 GS/s maximum sample rate
• 4 analog input channels
• 8 Mpts MegaZoom III deep memory for extended waveform capture
• Up to 100,000 real-time waveforms per second update rate
• High-definition XGA (1024 x 768) display with 256 intensity levels
• 12-bit high resolution mode for reduced noise in real-time acquisition
• Flexible triggering including pattern, serial bus, and HDTV triggering
• Hardware-accelerated decode options for I2C, SPI, CAN, and LIN buses
• Built-in 5-digit hardware counter and 10 MHz reference in/out
• Standard connectivity: USB 2.0, LAN, and GPIB interfaces

Applications

• Embedded microcontroller and DSP system debugging
• FPGA and ADC/DAC verification
• Mixed-signal design analysis
• Serial bus protocol analysis (I2C, SPI, CAN, LIN, USB)
• Analog HDTV/EDTV signal capture and measurement
• Education and laboratory measurements

Included Accessories

• Four 10:1 passive probes (one per channel)
• Power cord
• Front panel cover
• Keysight IO libraries suite
• Calibration certificate
• User, service, and programmer guides
