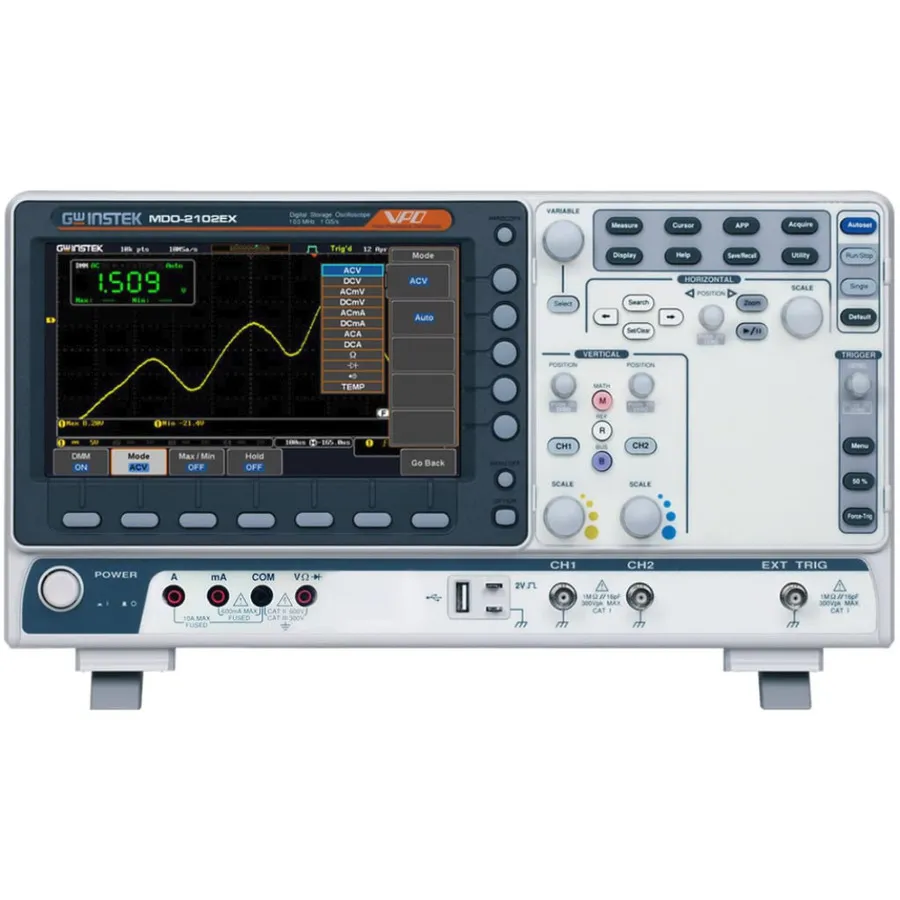

GW Instek MDO-2102EX Mixed Domain Oscilloscope

Overview

The GW Instek MDO-2102EX is a multi-functional mixed domain oscilloscope featuring integrated digital storage oscilloscope, spectrum analyzer, dual channel 25 MHz arbitrary waveform generator, 5V/1A power supply, and 5000-count digital multimeter. With 2 analog channels, 100 MHz bandwidth, 1 GSa/s sampling per channel, and 10M memory depth, the MDO-2102EX consolidates multiple test instruments into a single platform for comprehensive signal analysis and power supply testing.

Key Features

• 100 MHz bandwidth with 2 analog channels, 1 GSa/s real-time sampling per channel
• 10M points of memory with flexible resolution (1k, 10k, 100k, 1M, 10M)
• 120,000 waveforms per second display update rate
• 8-inch WVGA TFT LCD display with 1mV/div minimum vertical sensitivity
• Built-in spectrum analyzer with 1M FFT resolution and advanced trace detection methods
• Dual channel 25 MHz arbitrary waveform generator
• 5V/1A built-in power supply for device under test
• 5000-count integrated digital multimeter
• Serial protocol trigger and decoding (I2C, SPI, UART, CAN, LIN)
• 29,000 segmented memory for efficient waveform capture and analysis
• Data logging up to 1000 hours and mask test capabilities

Applications

• Mixed-signal circuit debugging and analysis
• Frequency and spectrum domain analysis
• Power supply testing and monitoring
• Protocol and bus analysis
• Extended signal monitoring with integrated power delivery
