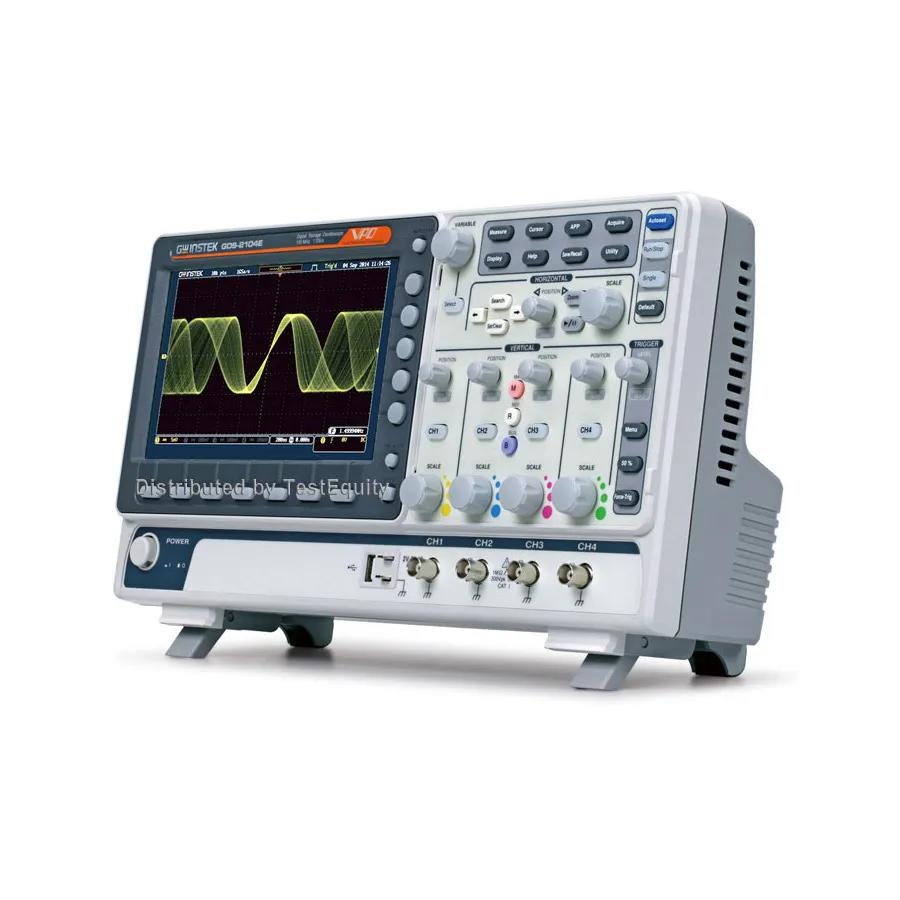

GW Instek GDS-2202E Digital Oscilloscope

Overview

The GW Instek GDS-2202E is a 2-channel digital storage oscilloscope from the GDS-2000E series, designed for modern embedded and mixed-signal applications. It features 200MHz bandwidth, 1GSa/s real-time sampling rate per channel, and an 8-inch WVGA TFT LCD display. Advanced features include serial bus decoding, extended data logging, and high-speed waveform updates.

Key Features

• 2 channels with 200MHz bandwidth and 1.75ns rise time
• 1GSa/s real-time sampling rate for each channel
• 10 megapoint record length for extended signal capture
• 120,000 waveform/second update rate
• 8-inch WVGA TFT LCD display (800x480 resolution)
• 1mV/div to 10V/div vertical sensitivity
• VPO (Visual Persistence Oscilloscope) waveform display technology
• FFT analysis with up to 1 million points for frequency domain measurements
• High and low pass digital filter functions
• 29,000 sections of segmented memory with waveform search
• I2C, SPI, UART, CAN, and LIN serial bus triggering and decoding
• Data logging function for tracking signal changes up to 100 hours
• 36 automatic measurements with statistics mode
• Zoom window and play/pause navigation
• Remote internet storage capability
• USB and LAN connectivity
• Three-year warranty

Applications

• Educational training and laboratory instruction
• Quality assurance and product testing
• Serial bus design and embedded system debugging
• Automotive communication system analysis (CAN/LIN)
• Maintenance and repair service

Included Accessories

• 200MHz switchable passive probe, GPT-300A-4 (one per channel)
• User manual on CD and quick start guide
• Power cord
• Free OpenWave software download
• USB and LabVIEW drivers
