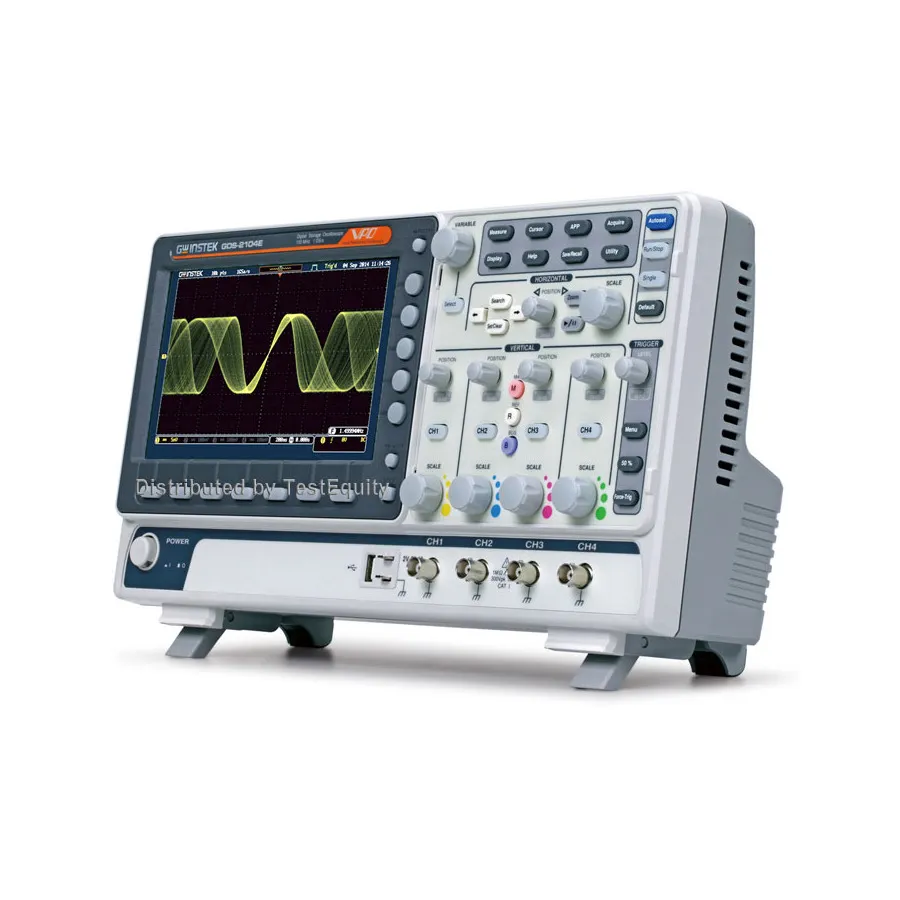

GW Instek GDS-2104E Digital Oscilloscope
Request a quote
GW Instek GDS-2104E — 4-channel 100MHz digital oscilloscope with 1GSa/s sampling, 10M record length, 120,000 wfm/s update rate, and advanced bus decoding.
Product details
| Model | GDS-2104E |
| Manufacturer | GW Instek |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The GW Instek GDS-2104E is a 4-channel digital storage oscilloscope from the GDS-2000E series, designed for modern embedded and mixed-signal applications. It features 100MHz bandwidth, 1GSa/s maximum real-time sampling rate, and an 8-inch WVGA TFT LCD display. Advanced features include serial bus decoding and extended data logging capabilities.
Key Features
- 4 channels with 100MHz bandwidth and 3.5ns rise time
- 1GSa/s maximum real-time sampling rate per channel
- 10 megapoint record length for extended signal capture
- 120,000 waveform/second update rate
- 8-inch WVGA TFT LCD display (800x480 resolution)
- 1mV/div to 10V/div vertical sensitivity
- VPO (Visual Persistence Oscilloscope) waveform display technology
- FFT analysis with up to 1 million points for frequency domain measurements
- High and low pass digital filter functions
- 29,000 sections of segmented memory with waveform search
- I2C, SPI, UART, CAN, and LIN serial bus triggering and decoding
- Data logging function for tracking signal changes up to 100 hours
- 36 automatic measurements with statistics mode
- Zoom window and play/pause navigation
- Remote internet storage capability
- USB and LAN connectivity
- Three-year warranty
Applications
- Educational training and laboratory instruction
- Quality assurance and product testing
- Serial bus design and embedded system debugging
- Automotive communication system analysis (CAN/LIN)
- Maintenance and repair service
Included Accessories
- 100MHz switchable passive probe, GTP-150A-4 (one per channel)
- User manual on CD and quick start guide
- Power cord
- Free OpenWave software download
- USB and LabVIEW drivers
Specifications
| Bandwidth | 100 MHz |
| Analog Channels | 4 |
| Sampling Rate | 2 GS/s |
| Memory | 10 Mpts |
| Type | DSO |
| Vertical Resolution | 8 bit |
| Display Type | 8 WVGA TFT LCD |
| Series | GDS-2000E Series |
| Interface | LAN / Ethernet, USB Host, Analog Input , USB |
