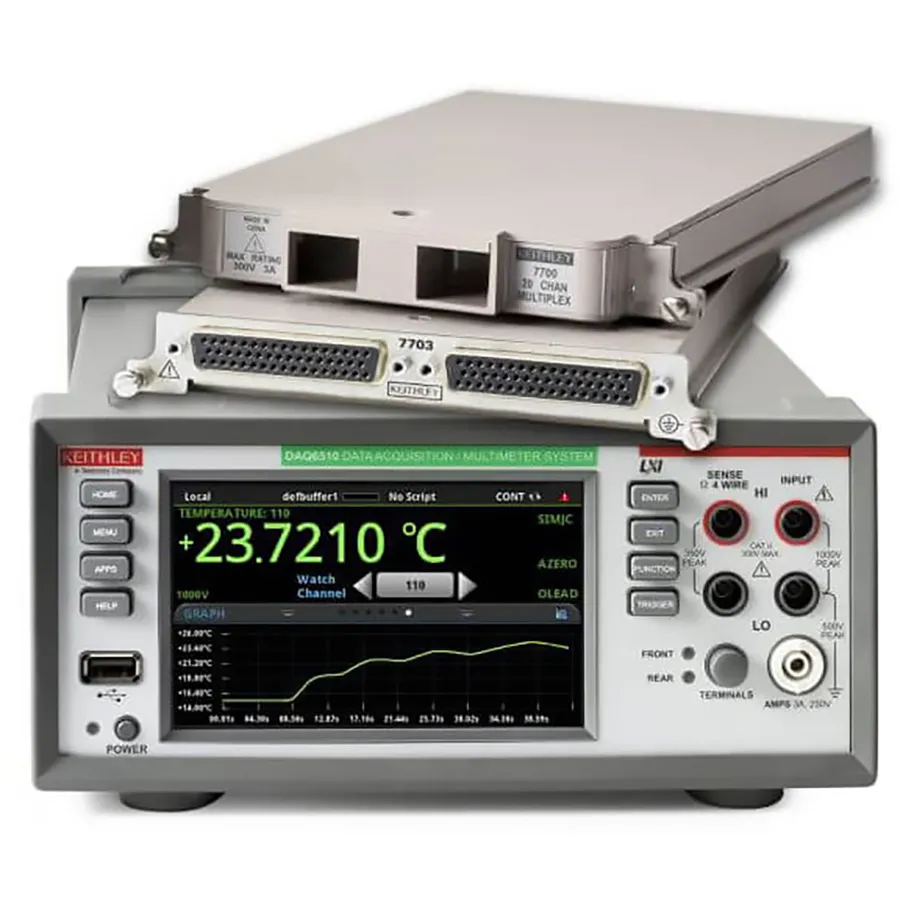

Keithley DAQ6510/7700 Data Acquisition System
Request a quote
Keithley DAQ6510/7700 is a precision data acquisition system with 6½-digit multimeter, 20-channel multiplexer, and 800 ch/s scanning for temperature and analog measurements.
Product details
| Model | DAQ6510/7700 |
| Manufacturer | Keithley |
| Category | Data Acquisition Systems |
| Availability | Made to order |
Description
Overview
The Keithley DAQ6510 is a precision data acquisition and logging system combining a high-resolution multimeter with pluggable switching and control modules. The system features a large 5-inch multi-touch display for direct instrument control without a PC, simplifying setup and data collection for temperature measurements, channel scanning, and device testing.
Key Features
- 6½-digit multimeter with high accuracy and 2-year traceability
- 20-channel differential multiplexer module included with automatic cold junction compensation
- High-speed scanning with solid-state relay modules
- 5-inch multi-touch capacitive touchscreen with graphical display
- Support for up to 80 measurement channels with optional plug-in switch modules
- Flexible temperature measurement via thermocouple, RTD, or thermistor sensors
- Multiple interface options: LAN/LXI, USB, and optional GPIB and RS-232
- KickStart coding-free instrument control software
Applications
- Environmental chamber testing with temperature monitoring
- Production test systems with device multiplexing
- Accelerated life testing (HALT/HASS)
- RF signal switching and control
- Wireless device testing
Included Accessories
- 7700 20-Channel Differential Multiplexer Module
- 1756 General Purpose Test Lead Set, 1000V, CAT II (qty. 2)
- USB Cable Type A to Type B
- Traceable Calibration Certificate
Specifications
| Number of Channels | 20 Channels |
| Interface | LAN/LXI and USB |
| Display Type | 5 Capacitive Touch |
| Series | DAQ6500 Series |
| Dimensions | 4.22 x 8.82 x 15.25" |
| Display | TFT LED |
| Display Digits | 6.5 |
| Input Voltage | 100/240 VAC |
| Maximum Current | 3 A |
| Maximum Voltage | 1000 V |
| Memory | 7 million readings |
| Mounting Type | Bench Top |
| Operating Temperature Range | 0-50°C |
| Relative Humidity Range | 0-80% |
| Resistance | 100 MΩ |
| Sampling Rate | 1 MS/s |
| Warranty | 3 Years |
