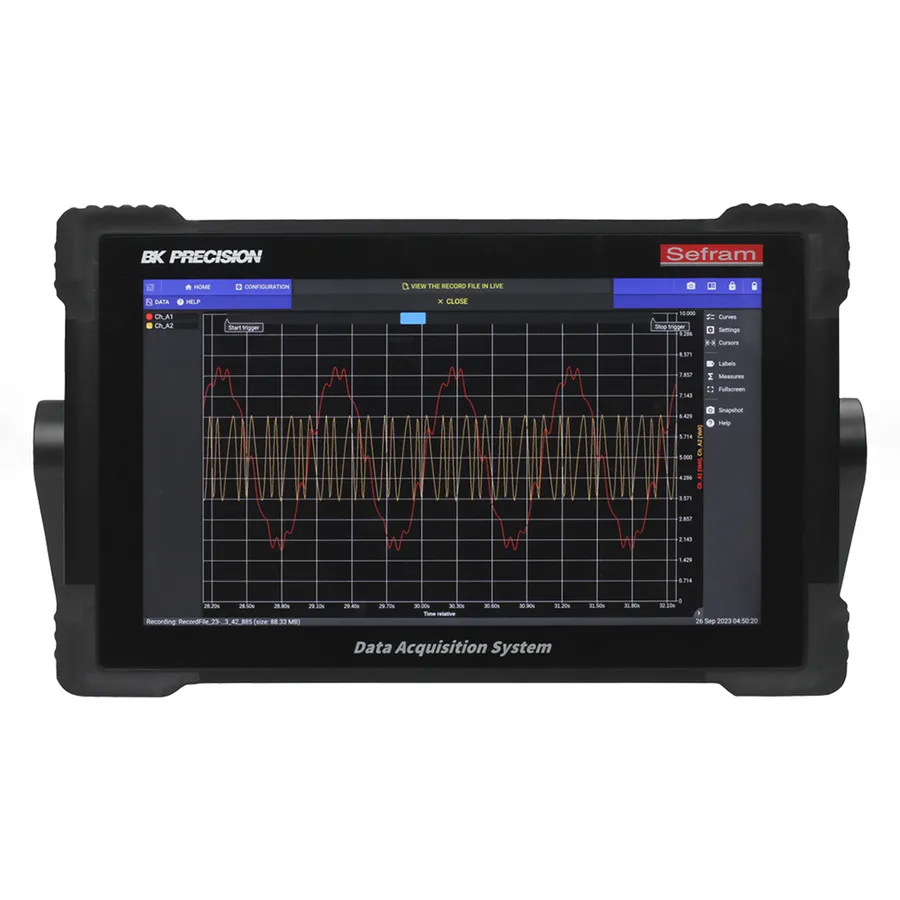

B&K Precision D18-FLE Data Acquisition System

Overview

The B&K Precision D18-FLE is a high-speed modular data acquisition system designed for capturing and recording complex signals across multiple channels simultaneously. Weighing approximately 15 lbs (6.8 kg), it is the lightest all-in-one system in its class. The fan-less design ensures quiet operation suitable for sensitive measurement environments. It supports up to 40 simultaneous analog channels at 1 MSa/s per channel with direct streaming to a 2 TB solid-state drive.

Key Features

• Simultaneous acquisition of up to 40 channels at 1 MSa/s per channel
• 10 input slots with 3 module types: Universal (4 ch), Multiplexed (8 ch), High Impedance (4 ch)
• Up to 80 analog inputs with multiplexed modules
• Voltage measurement range ±600 VDC
• Temperature measurements via thermocouples and RTDs
• 15.6" Full HD touchscreen display with intuitive interface
• 2 TB internal SSD for data storage
• Optional internal battery providing up to 3.5 hours of operation
• 16 digital input channels (24 V) and 4 digital outputs
• Multiple connectivity: USB 3.0 (x2), USB 2.0 (x2), LAN 1 Gbps (x2), HDMI (x1)
• Internal signal conditioning with analog and digital filters
• Free DASpro software for PC data viewing
• Web server and VNC support for remote control

Applications

• Transient and rapidly changing signal acquisition
• Multi-channel sensor measurements in laboratory and field environments
• Thermal and electrical testing with mixed signal types
• Portable data acquisition for remote locations
• Real-time waveform monitoring and recording
